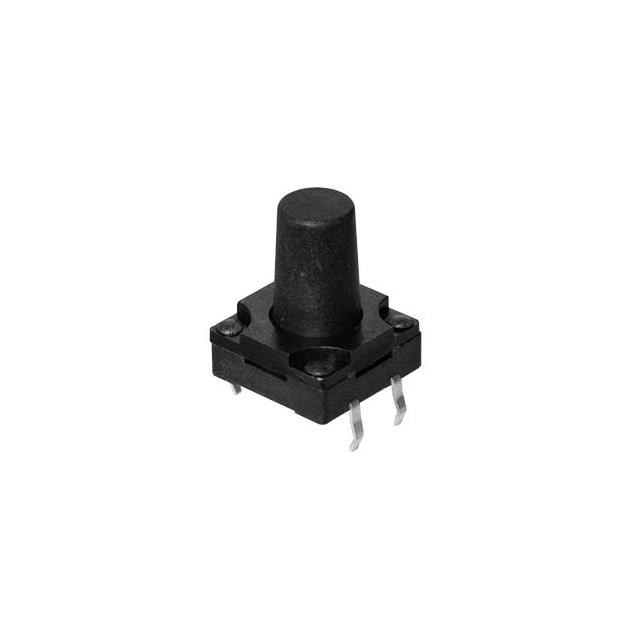

TS15-1212 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 2.6N

Part	Actuator Height off PCB, Vertical [z]	Illumination	Actuator Orientation	Outline [y]	Outline [x]	Termination Style	Contact Rating @ Voltage	Switch Function	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Operating Force	Actuator Height off PCB, Vertical	Switch Travel	Actuator Material	Mechanical Life
Same Sky (Formerly CUI Devices) TS15-1212-110-BK-260-SCR-D	11 mm	Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	260 gf
Same Sky (Formerly CUI Devices) TS15-1212-150-BK-160-SCR-D		Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	160 gf	15 mm
Same Sky (Formerly CUI Devices) TS15-1212-50-BK-260-SCR-D	5 mm	Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	260 gf
Same Sky (Formerly CUI Devices) TS15-1212-70-BK-260-SCR-D	7 mm	Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	260 gf		0.45 mm	Polyphthalamide (PPA)	50000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-150-BK-160-SCR-D		Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	160 gf	15 mm	0.45 mm	Polyphthalamide (PPA)	70000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-80-BK-160-SCR-D		Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	160 gf	8 mm	0.45 mm	Polyphthalamide (PPA)	70000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-95-BK-260-SCR-D	9.5 mm	Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	260 gf		0.45 mm	Polyphthalamide (PPA)	50000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-65-BK-160-SCR-D		Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	160 gf	6.5 mm	0.45 mm	Polyphthalamide (PPA)	70000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-65-BK-260-SCR-D		Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	260 gf	6.5 mm	0.45 mm	Polyphthalamide (PPA)	50000 Cycles
Same Sky (Formerly CUI Devices) TS15-1212-100-BK-160-SCR-D	10 mm	Non-Illuminated	Top Actuated	12 mm	12 mm	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	SPST-NO	80 °C	-30 ░C	Standard	160 gf
