BSZ0994 Series
Manufacturer: INFINEON
Beta
⌘K

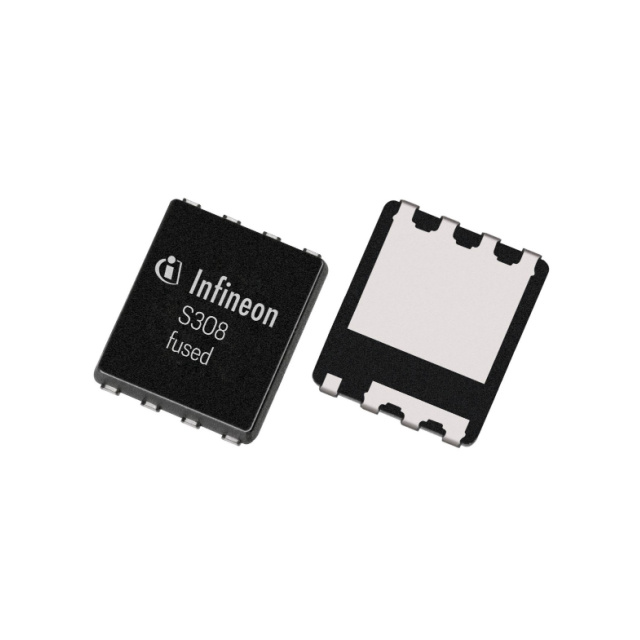

OPTIMOS™ N-CHANNEL POWER MOSFET 30 V ; PQFN 3.3 X 3.3 FUSED LEAD PACKAGE; 7 MOHM;
| Part | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds [Max] | FET Type | Vgs (Max) | Mounting Type | Rds On (Max) @ Id, Vgs | Technology | Power Dissipation (Max) | Package / Case | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 13 A | 890 pF | N-Channel | 20 V | Surface Mount | 7 mOhm | MOSFET (Metal Oxide) | 2.1 W | 8-PowerTDFN | 2 V | 30 V | 4.5 V 10 V | 7 nC | PG-TSDSON-8-25 | 150 °C | -55 °C |
