730-1QB Series
Manufacturer: Kacon
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

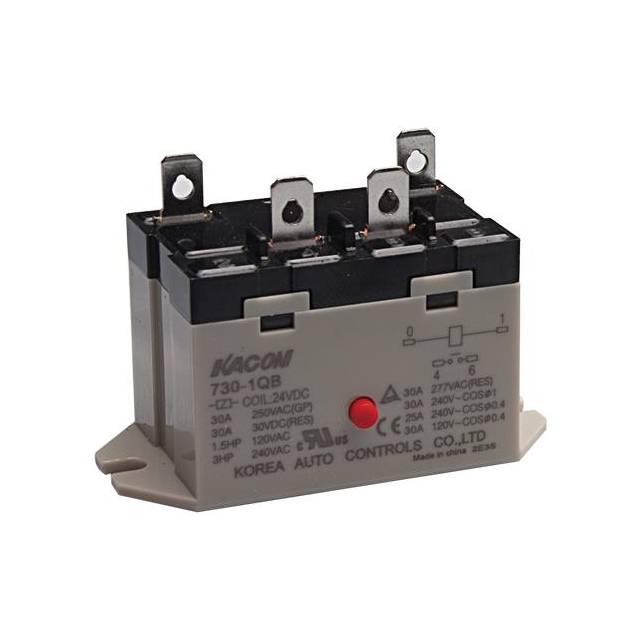

RELAY GEN PURPOSE SPST 30A 220V
| Part | Relay Type | Coil Current | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Contact Material | Coil Voltage | Mounting Type | Form A Count | Contact Form | Operate Time | Operating Temperature (Max) | Operating Temperature (Min) | Quick Connect Size (0.250") | Termination Style | Features | Contact Rating (Current) | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | General Purpose | 11.8 mA | 30 VDC | 277 VAC | Silver Alloy | 220 V | Chassis Mount | 1 | SPST-NO | 30 ms | 60 °C | -10 °C | 0.25 in | Quick Connect | Test Button | 30 A | 30 ms |
Kacon | General Purpose | 24.5 mA | 30 VDC | 277 VAC | Silver Alloy | 110 V | Chassis Mount | 1 | SPST-NO | 30 ms | 60 °C | -10 °C | 0.25 in | Quick Connect | Test Button | 30 A | 30 ms |
