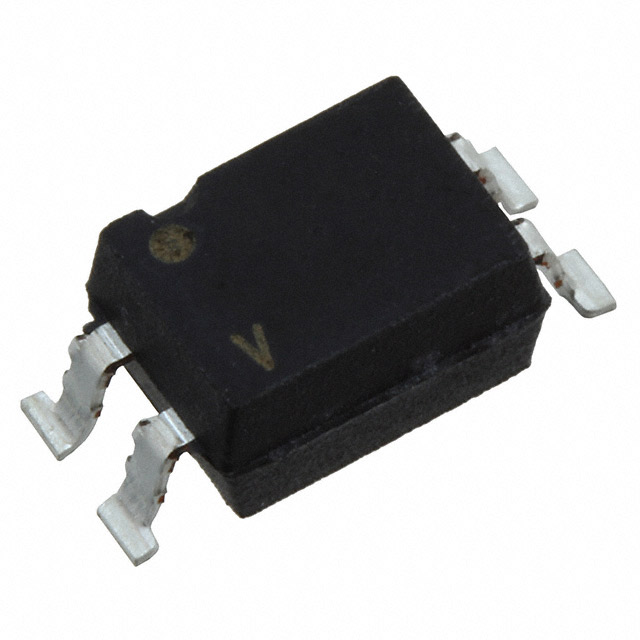

LH1546 Series

Catalog

RELAY SSR 50MA 1.6V DC-IN 0.12A 350V AC/DC-OUT 4-PIN PDIP SMD TUBE

Part	Load Current	Supplier Device Package	Voltage - Input	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Approval Agency	Mounting Type	Output Type	Package / Case	Package / Case	Voltage - Load [Max]	On-State Resistance (Max) [Max]	Package / Case	Package / Case
Vishay General Semiconductor - Diodes Division LH1546ADF	120 mA	4-SMD	1.2 VDC	85 °C	-40 °C	Gull Wing	BSI cUL FIMKO UL VDE	Surface Mount	AC DC	4-SMD	0.3 in 7.62 mm	350 V	28 Ohms
Vishay General Semiconductor - Diodes Division LH1546ADFTR	120 mA	4-SMD	1.2 VDC	85 °C	-40 °C	Gull Wing	BSI cUL FIMKO UL VDE	Surface Mount	AC DC	4-SMD	0.3 in 7.62 mm	350 V	28 Ohms
Vishay General Semiconductor - Diodes Division LH1546AEF	120 mA	4-SOP	1.18 VDC	85 °C	-40 °C	Gull Wing	BSI cUL FIMKO UL VDE	Surface Mount	AC DC	4-SOP		350 V	28 Ohms	0.173 in	4.4 mm
Vishay General Semiconductor - Diodes Division LH1546AEF-T0	120 mA	4-SOP	1.18 VDC	85 °C	-40 °C	Gull Wing	BSI cUL FIMKO UL VDE	Surface Mount	AC DC	4-SOP		350 V	28 Ohms	0.173 in	4.4 mm
