80134 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

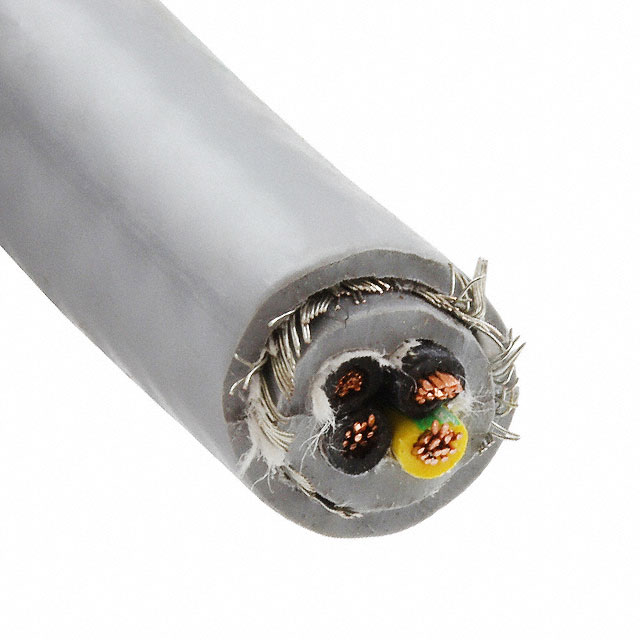

CABLE 4COND 18AWG SLATE SHLD
| Part | Shield Material | Voltage | Shield Type | Length [x] | Length [x] | Conductor Insulation | Jacket Color | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 600 V | Braid | 30.5 m | 100 ft | Polyphenylene Ether (PPE) | Slate | 18 AWG | 4 | 0.0319 in | 0.81 mm | 0.249 in | 6.32 mm | Copper Tinned | 90 °C | -50 °C | Multi-Conductor | 85 % | 41 strands | 34 AWG | Polyurethane (PU) |
