52057 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

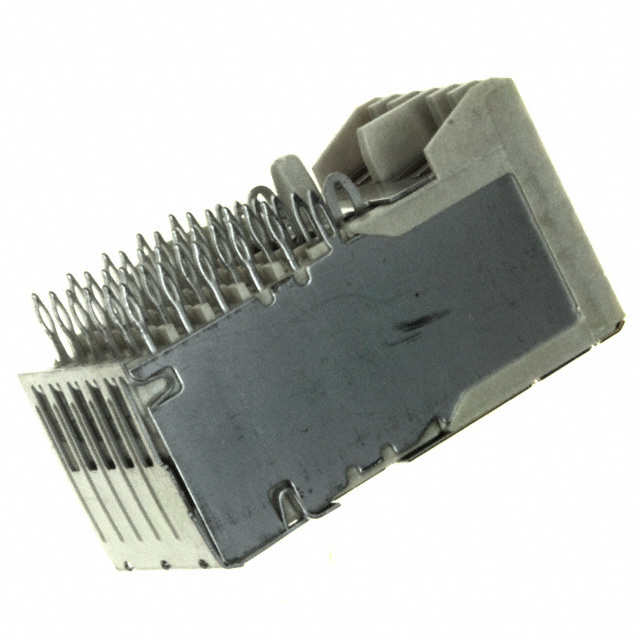

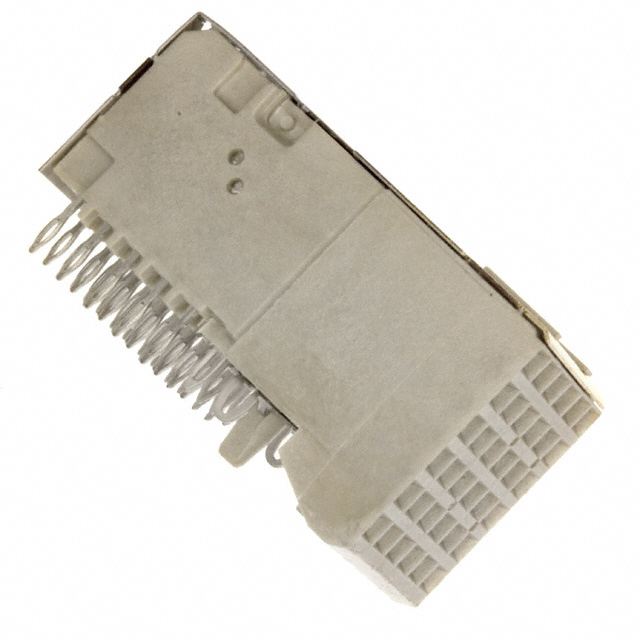

CONN RCPT HIGH SPEED 36P EDGE MT
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Columns | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions Loaded | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Material Flammability Rating | Connector Type | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 5 | 105 ░C | -55 °C | Natural | 6 | 36 | Board Edge Right Angle Through Hole | 0.079 in | 2 mm | All | 6 | 30 | UL94 V-0 | Receptacle Female Sockets | Gold | Board Guide Shielded | 0.76 Ám | 30 Áin | Press-Fit | High Speed |
Amphenol ICC (FCI) | 5 | 105 ░C | -55 °C | Natural | 6 | 36 | Board Edge Right Angle Through Hole | 0.079 in | 2 mm | All | 6 | 30 | UL94 V-0 | Receptacle Female Sockets | Gold | Board Guide Shielded | 0.76 Ám | 30 Áin | Press-Fit | High Speed |
 Amphenol ICC (FCI) | 5 | 105 ░C | -55 °C | Natural | 6 | 36 | Board Edge Right Angle Through Hole | 0.079 in | 2 mm | All | 6 | 30 | UL94 V-0 | Receptacle Female Sockets | Gold | Board Guide Shielded | 0.76 Ám | 30 Áin | Press-Fit | High Speed |
