NCP81295 Series

50A, Hotswap Controller with Internal MOSFET and IMON function with paralleling capability in a thermally enhanced package

Manufacturer: ON Semiconductor

Catalog

50A, Hotswap Controller with Internal MOSFET and IMON function with paralleling capability in a thermally enhanced package

Part	Current - Output	Sensing Method	Supplier Device Package	Accuracy	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Function	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]

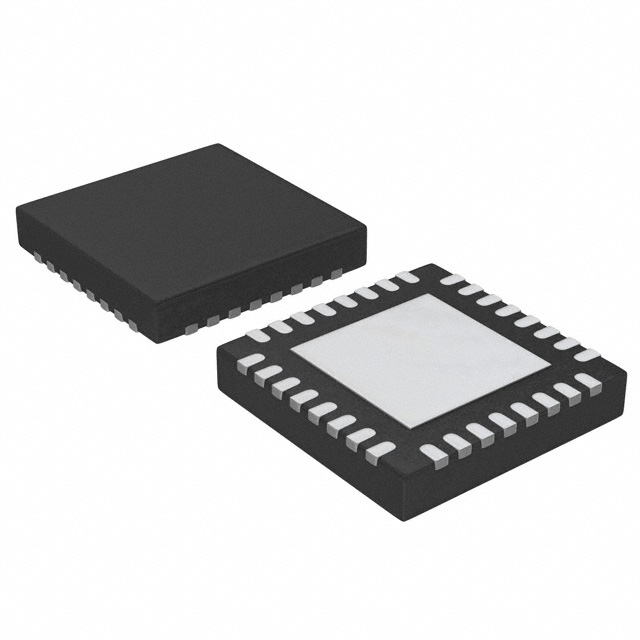

ON Semiconductor NCP81295MNTXG	50 A	High-Side	32-LQFN (5x5)	6 %	Surface Mount	-40 °C	125 ¯C	Electronic Fuse	32-LFQFN Exposed Pad	18 V	4.5 V

Catalog

50A, Hotswap Controller with Internal MOSFET and IMON function with paralleling capability in a thermally enhanced package

Key Features

• Low 0.65mohms internal mosfet

• Overcurrent protection against short circuit, overcurrent condition, and soft shorts

• Analog IMON

• Close loop operation during soft start

• Enhanced 5mm by 5mm QFN

• 4.5V to 18V oeprating range

Description

The NCP81295 and NCP81296 are hotswap controllers with a low on resistance MOSFET (0.65mohms). These devices provide overcurrent protection during short circuit and overcurrent condition. It low on resistance reduces losses and the current is monitored by the internally current mirror, thus eliminating the need for a sense resistor, thereby saving power and cost. These devices can be paralleled for higher current conditions. Robust soft operating area performance helps minimize the number of paralleled device in higher current applications. The NCP81295 offers latch up during overcurrent while the NCP81296 offers hiccup operation.Both parts are offered in a thermally enhanced 5mm by 5mm QFN package.
