1478035 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

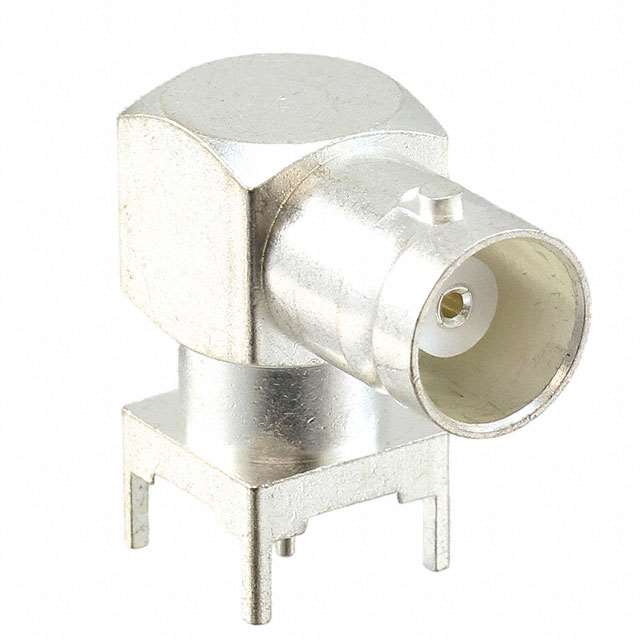

CONN BNC JACK R/A 50 OHM PCB
| Part | Housing Color | Mounting Type | Impedance | Voltage Rating | Fastening Type | Frequency - Max [Max] | Contact Termination | Center Contact Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Shield Termination | Dielectric Material | Body Material | Number of Ports | Center Contact Plating | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Silver | Through Hole Right Angle | 50 Ohms | 500 V | Bayonet Lock | 4 GHz | Solder | Brass | 500 | -65 ░C | 165 °C | Silver | Solder | Polytetrafluoroethylene (PTFE) | Brass | 1 | Silver | Female Socket Jack | BNC |
 TE Connectivity Raychem Cable Protection | Silver | Through Hole Right Angle | 50 Ohms | 500 V | Bayonet Lock | 4 GHz | Solder | Brass | 500 | -65 ░C | 165 °C | Silver | Solder | Polytetrafluoroethylene (PTFE) | Brass | 1 | Silver | Female Socket Jack | BNC |
