R7FA4E2 Series

Manufacturer: Renesas Electronics Corporation

Catalog

MCU RA4 ARM CM33 100MHZ 128KB/40

Part	Supplier Device Package	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RAM Size	Oscillator Type	Speed	Connectivity	Mounting Type	Data Converters	EEPROM Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Size	Core Processor	Program Memory Type	Core Size	Data Converters	Board Type	Suggested Programming Environment	Utilized IC / Part	Contents	Interconnect System	Type	Platform	Interconnect System
Renesas Electronics Corporation R7FA4E2B93CFM#BA0	64-LFQFP (10x10)	DMA LVD POR PWM WDT	125 °C	-40 °C	64-LQFP	40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART USB	Surface Mount	1 channels 12 channels 12 b	4K x 8	45	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit
Renesas Electronics Corporation R7FA4E2B93CNH#BA0	32-HWQFN (5x5)	DMA LVD POR PWM WDT	125 °C	-40 °C		40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART	Surface Mount	1 channels 5 channels 12 b	4K x 8	16	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit	A/D D/A
Renesas Electronics Corporation R7FA4E2B93CFM#AA0	64-LFQFP (10x10)	DMA LVD POR PWM WDT	125 °C	-40 °C	64-LQFP	40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART USB	Surface Mount	1 channels 12 channels 12 b	4K x 8	45	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit
Renesas Electronics Corporation R7FA4E2B92CBC#BC0	36-LFBGA (4x4)	DMA LVD POR PWM WDT	85 C	-40 ¯C	36-LFBGA	40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART USB	Surface Mount		4K x 8	20	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit	A/D 4x12b SAR D/A 1x12b

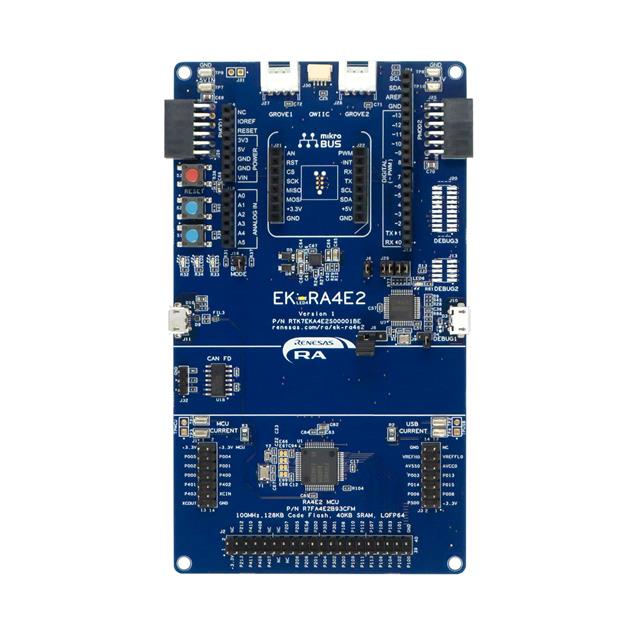

Renesas Electronics Corporation RTK7EKA4E2S00001BE										Fixed							ARM® Cortex®-M33				Evaluation Platform	e2 studio	R7FA4E2 RA4E2	Board Board(s) Cable	mikroBUS Click Pmod	MCU 32-Bit	EK-RA4E2
Renesas Electronics Corporation R7FA4E2B93CBC#BC0	36-LFBGA (4x4)	DMA LVD POR PWM WDT	105 °C	-40 °C	36-LFBGA	40 K	Internal	100 MHz	CANbus I2C SCI SPI SSIE UART/USART USB	Surface Mount		4K x 8	20	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit	A/D 4x12b SAR D/A 1x12b
Renesas Electronics Corporation R7FA4E2B93CNE#BA0	48-HWQFN (7x7)	DMA LVD POR PWM WDT	125 °C	-40 °C	48-WFQFN Exposed Pad	40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART USB	Surface Mount		4K x 8	29	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit	A/D 8x12b SAR D/A 1x12b

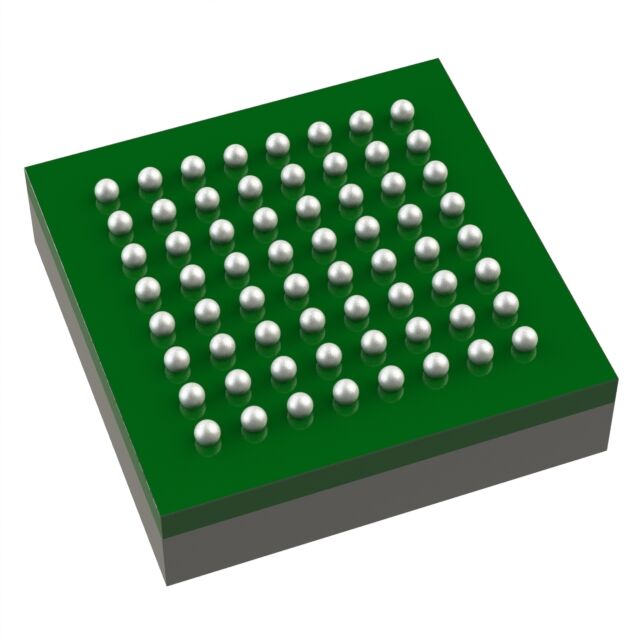

Renesas Electronics Corporation R7FA4E2B93CBB#BC0	64-LFBGA (5x5)	DMA LVD POR PWM WDT	105 °C	-40 °C	64-LFBGA	40 K	Internal	100 MHz	CANbus I2C SCI SPI SSIE UART/USART USB	Surface Mount	1 channels 12 channels 12 b	4K x 8	45	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit
Renesas Electronics Corporation R7FA4E2B92CBB#BC0	64-LFBGA (5x5)	DMA LVD POR PWM WDT	85 C	-40 ¯C	64-LFBGA	40 K	Internal	100 MHz	CANbus EBI/EMI I2C SCI SPI UART/USART USB	Surface Mount	1 channels 12 channels 12 b	4K x 8	45	3.6 V	2.7 V	128 KB	ARM® Cortex®-M33	FLASH	32-Bit

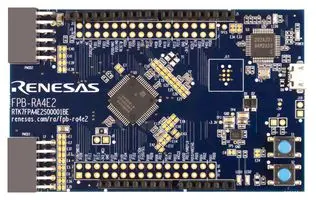

Renesas Electronics Corporation RTK7FPA4E2S00001BE										Fixed							ARM® Cortex®-M33				Evaluation Platform		R7FA4E2 RA4E2	Board(s)	Arduino R3 Shield	MCU 32-Bit	FPB-RA4E2	Pmod
