307-078 Series
Manufacturer: EDAC Inc.
Beta
⌘K

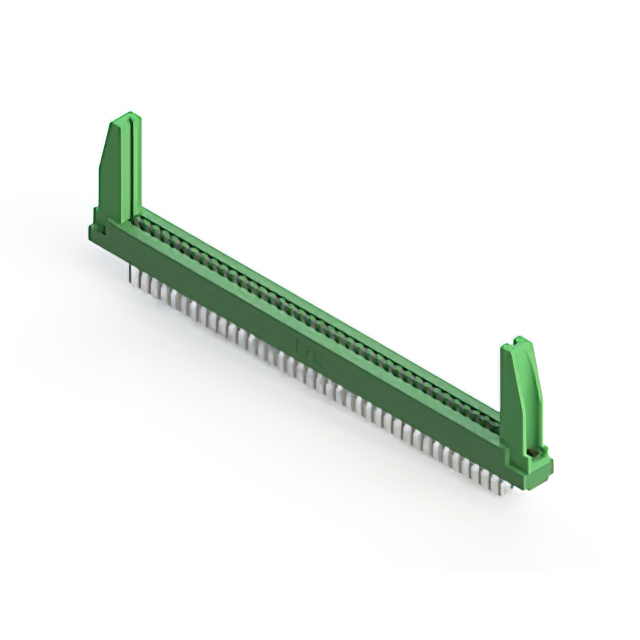

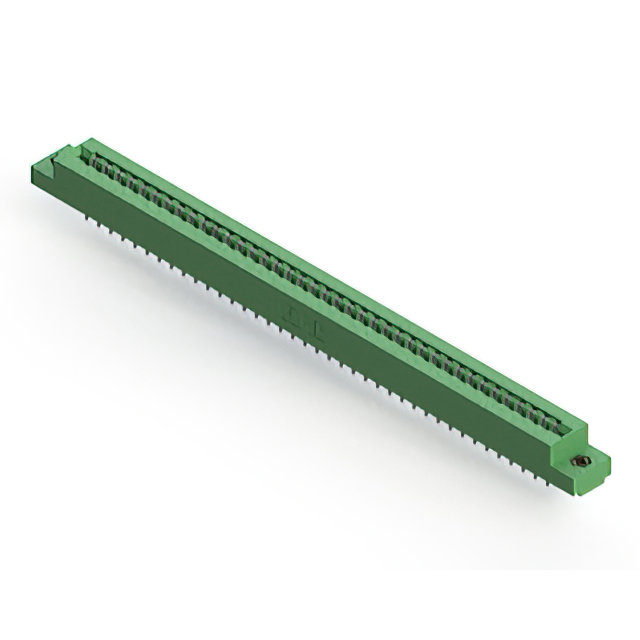

CONN EDGE DUAL FMALE 78POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Pitch | Pitch | Number of Positions | Number of Rows [custom] | Number of Positions/Bay/Row | Read Out | Mounting Type | Contact Material | Termination | Gender | Color | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Right Angle Through Hole | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Right Angle Through Hole | Copper Alloy | Solder Wire Wrap | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Board Edge Straddle Mount | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Right Angle Through Hole | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Right Angle Through Hole | Copper Alloy | Solder Wire Wrap | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Board Edge Straddle Mount | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Card Extender Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Board Edge Straddle Mount | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | Card Extender Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Right Angle Through Hole | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Through Hole | Copper Alloy | Wire Wrap | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Semi Bellows | 3.96 mm | 0.156 in | 78 | 2 | 39 | Dual | Through Hole | Copper Alloy | Solder | Female | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | -40 C | 105 ░C | Tin |
