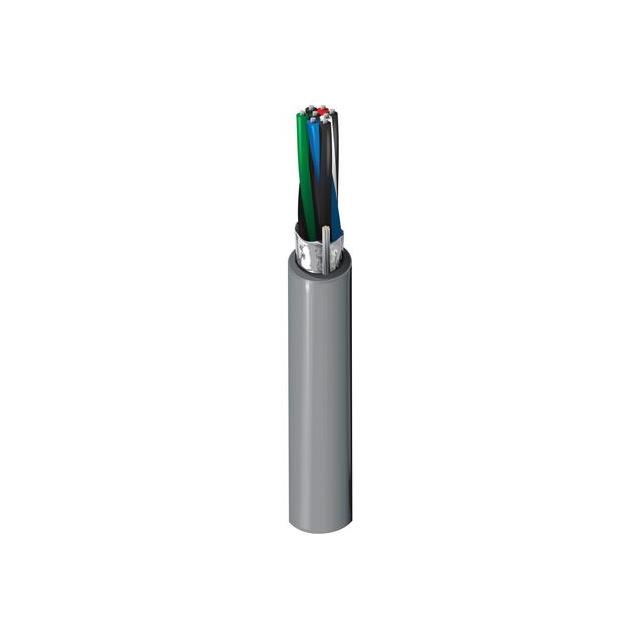

8134FO Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 8CON 28AWG CHROM
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Material | Length | Length | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Pair | Drain Wire | 7 | 36 AWG | UL Style 2919 | Foil | Chrome | 0.035 in | 0.889 mm | 80 °C | -30 ░C | 8 | 28 AWG | 0.27 " | 6.86 mm | Foam Polyethylene (FPE) | Computer |
Belden Inc. | Aluminum | 100 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Pair | Drain Wire | 7 | 36 AWG | UL Style 2919 | Foil | Chrome | 0.035 in | 0.889 mm | 80 °C | -30 ░C | 8 | 28 AWG | 0.27 " | 6.86 mm | Foam Polyethylene (FPE) | Computer |
