UTG18 Series

Catalog

CONN BACKSH W/CLMP SZ18 BLK PG16

Part	For Use With/Related Products	Thread Size	Ingress Protection IP Rating	Ingress Protection Description	Color	Cable Opening (Min)	Cable Opening (Max)	Shell Size - Insert	Shell Size - Insert	Diameter - Outside	Type	Material	Cable Exit Angle	Plating	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Includes	Includes Total Count	Features

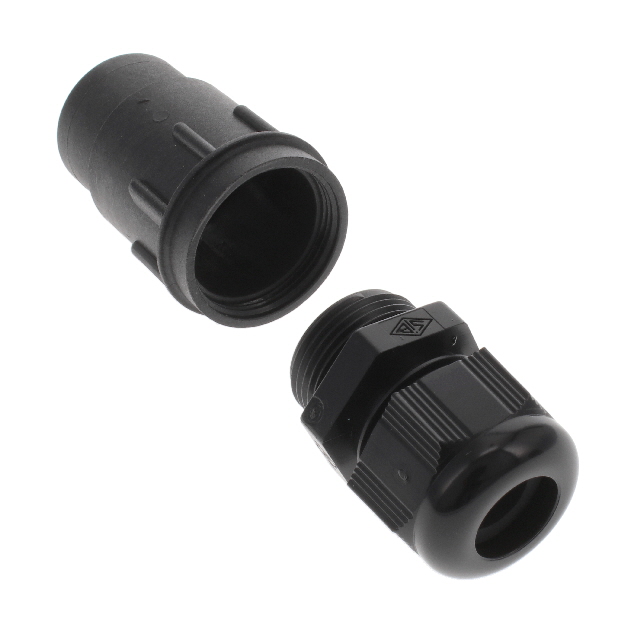

Amphenol Aerospace Operations UTG18ST	Trim Trio® UTG and UTP Connectors	PG16	IP65	Dust Tight Water Resistant	Black	0.276 in	0.472 in	18	18	1.311 in	Backshell Cable Clamp	Thermoplastic	180 °

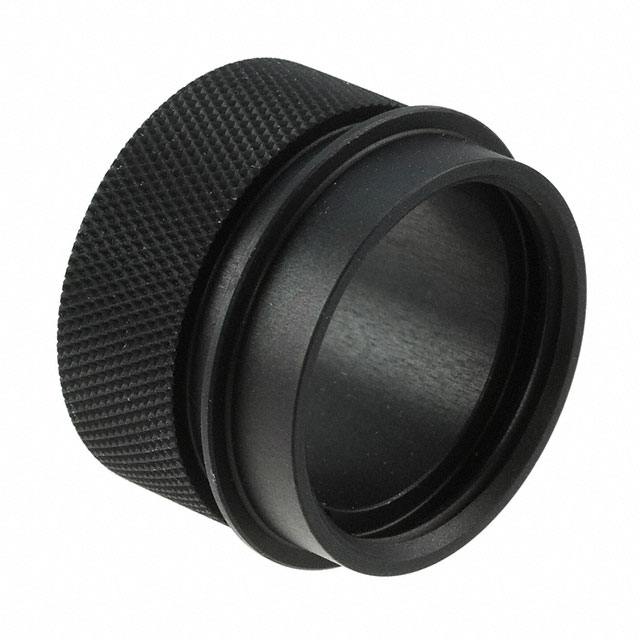

Amphenol Aerospace Operations UTG18AD	Trim Trio® UTG and UTP Connectors				Black			18	18	1.311 in	Backshell Heat Shrink Adapter	Metal	180 °	Anodized	18 TPI	UNEF	1.0625 in

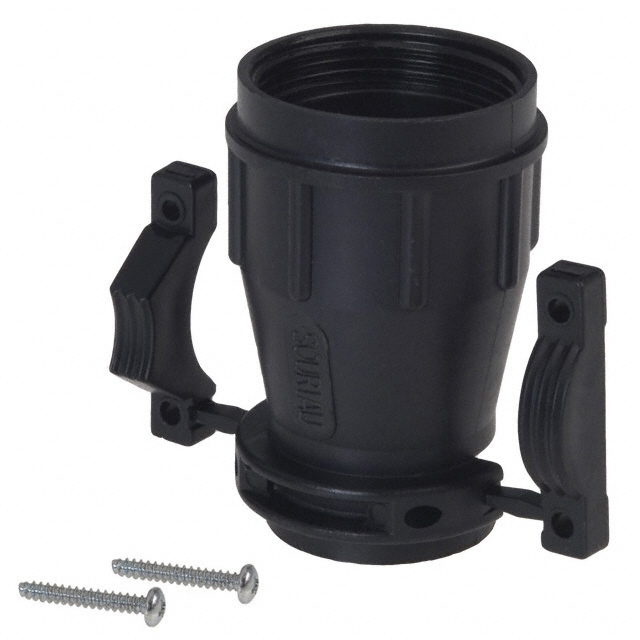

Amphenol Aerospace Operations UTG18-AC	Trim Trio® UTG and UTP Connectors				Black	0.197 in	0.748 in	18	18	1.311 in	Backshell Cable Clamp	Thermoplastic	180 °		18 TPI	UNEF	1.0625 in	Backshell Cable Clamp Screws	5 pcs	Clamp Screws

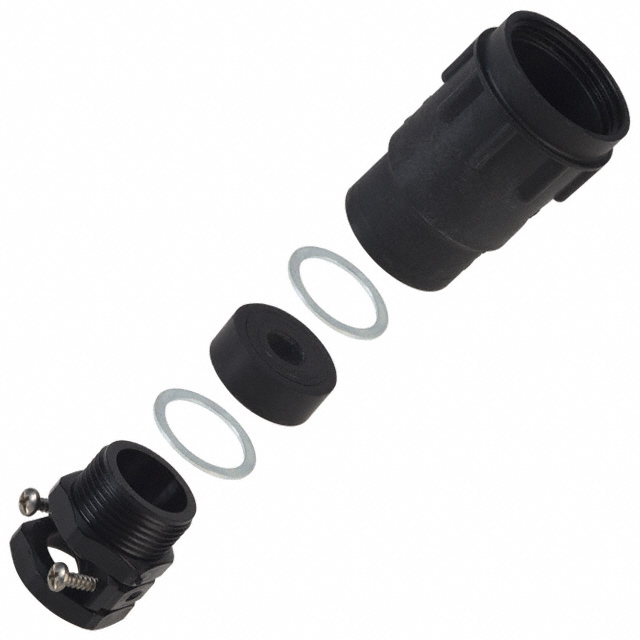

Amphenol Aerospace Operations UTG18PG	Trim Trio® UTG and UTP Connectors	PG16	IP65	Dust Tight Water Resistant	Black	0.315 in	0.807 in	18	18	1.311 in	Backshell Cable Clamp	Thermoplastic	180 °					Backshell Cable Clamp Cable Gland Screws Washers	7 pcs	Cable Gland Clamp Screws Washers
