630W13 Series
Manufacturer: EDAC Inc.
Beta
⌘K

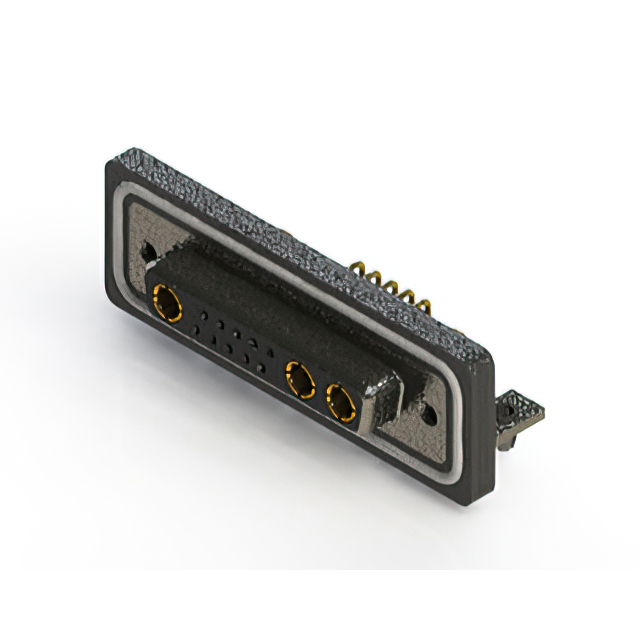

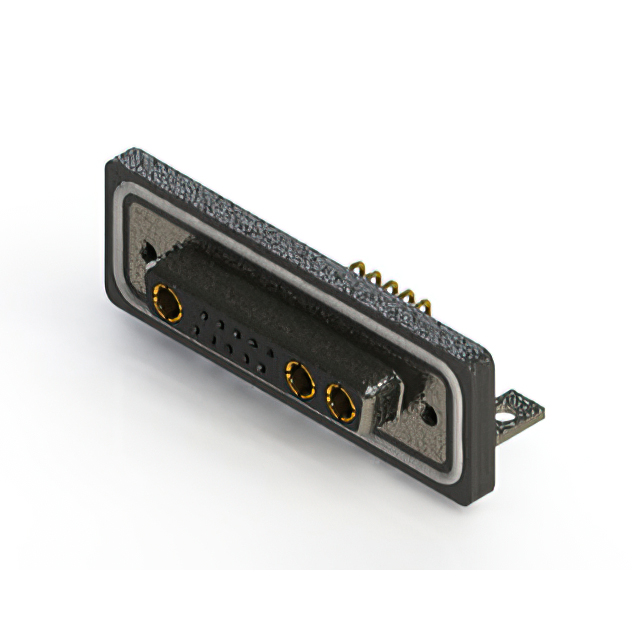

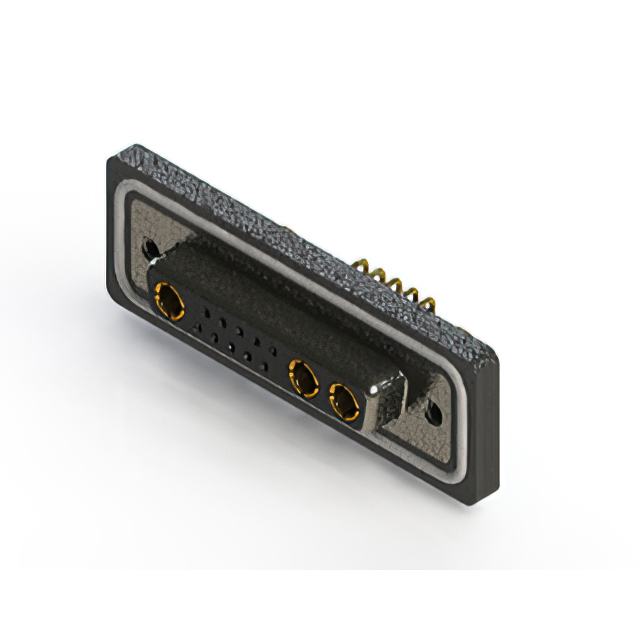

CONN D-SUB RCPT 13POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Voltage Rating | Contact Material | Flange Feature | Flange Feature | Features | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Style | Current Rating (Amps) | Contact Finish | Ingress Protection | Mounting Type | Contact Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Termination | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell | 4-40 | Mounting Brackets Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | 5 A 40 A | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell | 4-40 | Mounting Brackets Shielded | 15 µin | 0.38 µm | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 10A 5A | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Mounting Brackets Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 20A 5A | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Mounting Brackets Shielded | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 20A 5A | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Shielded | 5 µin | 0.127 µm | UL94 V-0 | Combo D-Sub | 5 A 40 A | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Mounting Brackets Shielded | 15 µin | 0.38 µm | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 20A 5A | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Board Lock Mounting Brackets Shielded | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 10A 5A | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell | 4-40 | Board Lock Mounting Brackets Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | 5 A 40 A | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell | 4-40 | Mounting Brackets Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 20A 5A | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | Copper Alloy | Housing/Shell (M3) | Board Lock Mounting Brackets Shielded | 30 Áin | 0.76 Ám | UL94 V-0 | Combo D-Sub | Gold | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Signal and Power | 2 | 3 | 13C3 13W3 | Nickel Plated Steel | 10 | 3 | Receptacle Female Sockets | Solder | 20A 5A |
