A3F Series

Catalog

XLR CONNECTOR, 3 CONTACTS, JACK, CABLE MOUNT, SILVER PLATED CONTACTS, METAL BODY, A SERIES

Part	Current Rating (Amps)	Applications	Color	Orientation	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Contact Material	Fastening Type	Connector Type	Voltage Rating	Mounting Type	Features	Primary Material	Insert Material	Contact Finish - Mating	Shell Size - Insert	Shell Material	Backshell Material, Plating	Cable Opening [Max]

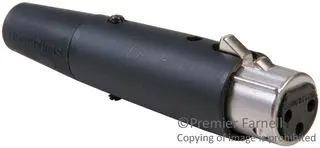

SWITCHCRAFT/CONXALL A3FBX	15 A	Audio Instrumentation	Black	Keyed	7.62 mm	0.3 "	5.33 mm	0.21 in	Brass	Latch Lock	Plug Female Sockets	125 VAC	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	Metal	Polyester	Silver	XLR	Stainless Steel	Black Finish Zinc

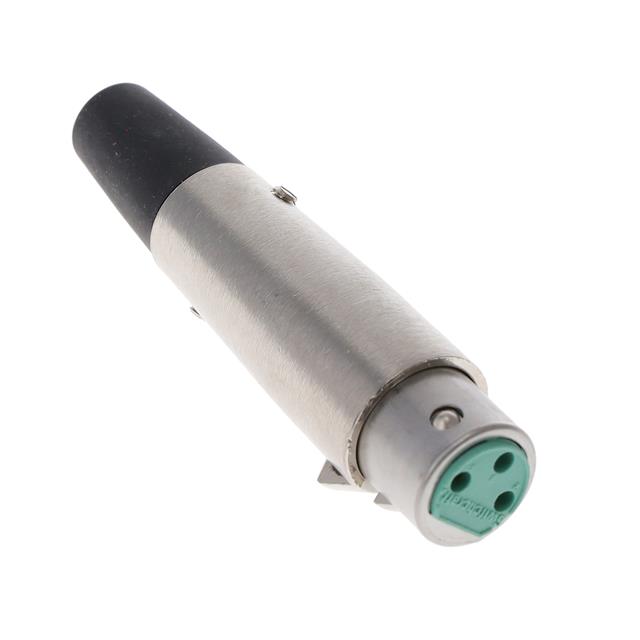

SWITCHCRAFT/CONXALL A3FS	15 A	Audio Instrumentation	Silver	Keyed		0.205 in	2.67 mm	0.105 in	Brass	Latch Lock	Plug Female Sockets	125 VAC	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	Metal	Polyester	Silver	XLR	Stainless Steel	Nickel Zinc	5.21 mm
SWITCHCRAFT/CONXALL A3FBAU	15 A	Audio Instrumentation	Black	Keyed	7.62 mm	0.3 "	5.33 mm	0.21 in	Brass	Latch Lock	Plug Female Sockets	125 VAC	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	Metal	Polyester	Gold	XLR	Stainless Steel	Black Finish Zinc
SWITCHCRAFT/CONXALL A3FL	15 A	Audio Instrumentation	Silver	Keyed		0.328 in	7.62 mm	0.3 in	Brass	Latch Lock	Plug Female Sockets	125 VAC	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	Metal	Polyester	Silver	XLR	Stainless Steel	Nickel Zinc	8.33 mm
SWITCHCRAFT/CONXALL A3FB	15 A	Audio Instrumentation	Black	Keyed	7.62 mm	0.3 "	5.33 mm	0.21 in	Brass	Latch Lock	Plug Female Sockets	125 VAC	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	Metal	Polyester	Silver	XLR	Stainless Steel	Black Finish Zinc
