M50-390 Series

Catalog

2+2 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Number of Rows [custom]	Termination	Contact Finish - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post

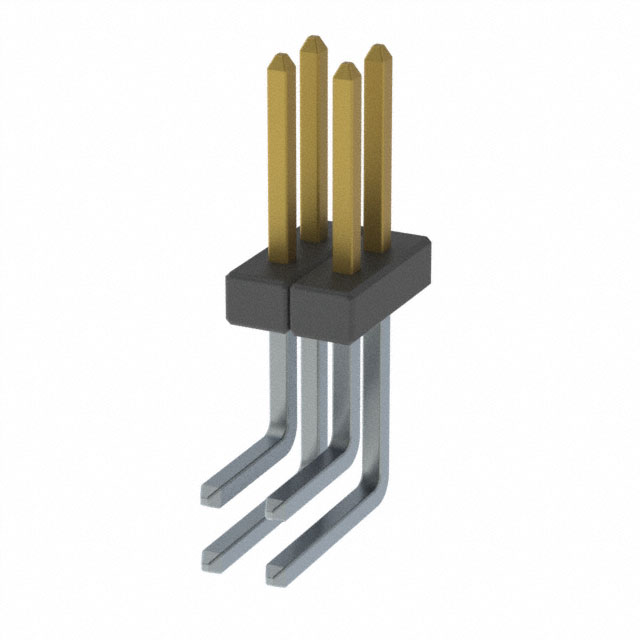

Harwin Inc. M50-3900242	-40 C	105 ░C	Unshrouded	1 mm	0.039 in	1 A	0.05 in	1.27 mm	Push-Pull	Header	0.076 µm	3 µin	Board to Board Cable	3.81 mm	0.15 in	2.5 µm	98.4 µin	Square	Thermoplastic	2	Solder	Gold	Black	1.27 mm	0.05 in	Right Angle Through Hole	Copper Alloy	2 mm	0.079 in	4	Male Pin	UL94 V-0	All	Tin

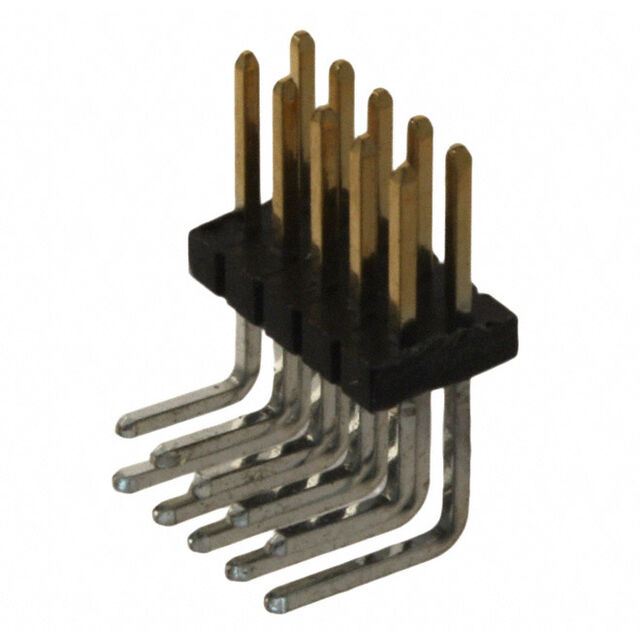

Harwin Inc. M50-3900542	-40 C	105 ░C	Unshrouded	1 mm	0.039 in	1 A	0.05 in	1.27 mm	Push-Pull	Header	0.076 µm	3 µin	Board to Board Cable	3.81 mm	0.15 in	2.5 µm	98.4 µin	Square	Thermoplastic	2	Solder	Gold	Black	1.27 mm	0.05 in	Right Angle Through Hole	Copper Alloy	2 mm	0.079 in	10	Male Pin	UL94 V-0	All	Tin
