RxxP2xx Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 5.2KV UNREG 12VIN +/-12VOUT

...

Part	Features	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Power (Watts)	Applications	Type	Voltage - Output 1	Number of Outputs	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package

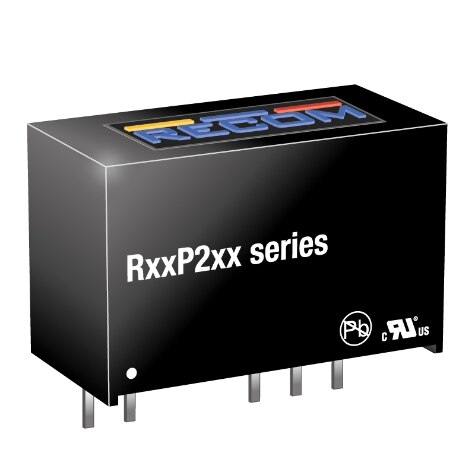

Recom Power R12P212D/P	SCP	75 %	6.4 kV	10.8 V	85 °C	-40 C	7-SIP Module 5 Leads	2 W	ITE (Commercial) Medical	Isolated Module	12 V	2	-12 V	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	85 mA	85 mA	Through Hole	13.2 V
Recom Power R15P205D/P	SCP	75 %	6.4 kV	13.5 V	85 °C	-40 C	7-SIP Module 5 Leads	2 W	ITE (Commercial) Medical	Isolated Module	5 V	2	-5 V	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	16.5 V
Recom Power R12P205S		75 %	6.4 kV	10.8 V	85 °C	-40 C	7-SIP Module 4 Leads	2 W	ITE (Commercial) Medical	Isolated Module	5 V	1		12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	13.2 V	400 mA
Recom Power R12P209S/P/X2	SCP	75 %	6.4 kV	10.8 V	85 °C	-40 C	7-SIP Module 4 Leads	2 W	ITE (Commercial) Medical	Isolated Module	9 V	1		12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "			Through Hole	13.2 V	222 mA
Recom Power R05P209S		75 %	6.4 kV	4.5 V	85 °C	-40 C	7-SIP Module 4 Leads	2 W	ITE (Commercial) Medical	Isolated Module	9 V	1		12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "			Through Hole	5.5 V	222 mA	7-SIP
Recom Power R05P205D		75 %	6.4 kV	4.5 V	85 °C	-40 C	7-SIP Module 5 Leads	2 W	ITE (Commercial) Medical	Isolated Module	5 V	2	-5 V	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	5.5 V
Recom Power R24P209S/P	SCP	75 %	6.4 kV	21.6 V	85 °C	-40 C	7-SIP Module 4 Leads	2 W	ITE (Commercial) Medical	Isolated Module	9 V	1		12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	26.4 V	222 mA
Recom Power R05P23.3S/P	SCP	70 %	6.4 kV	4.5 V	85 °C	-40 C	7-SIP Module 4 Leads	2 W	ITE (Commercial) Medical	Isolated Module	3.3 V	1		12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	5.5 V	600 mA
Recom Power R24P209D/P	SCP	75 %	6.4 kV	21.6 V	90 °C	-40 C	7-SIP Module 5 Leads	2 W	ITE (Commercial) Medical	Isolated Module	9 V	2	-9 V	12.4 mm	0.39 in	9.9 mm	19.6 mm	0.77 in	0.49 "	111 mA		Through Hole	26.4 V
Recom Power R15P23.3D/P	SCP	70 %	6.4 kV	13.5 V	85 °C	-40 C	7-SIP Module 5 Leads	2 W	ITE (Commercial) Medical	Isolated Module	3.3 V	2	-3.3 V	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			Through Hole	16.5 V	0.3 A
