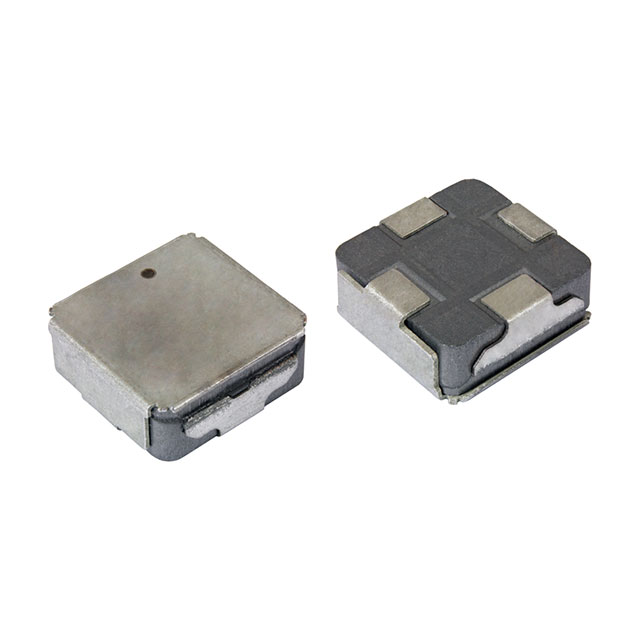

IHLE-4040DD-5A Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER INDUCTORS - SMD 68UH 20% W/E-FIELD SHIELD
| Part | Package / Case | Current Rating | Mounting Type | Current - Saturation (Isat) | Ratings | Size / Dimension Width | Size / Dimension Length | Frequency - Self Resonant | Inductance | Operating Temperature (Max) | Operating Temperature (Min) | DC Resistance (DCR) (Max) | Inductance Frequency - Test | Tolerance | Height - Seated (Max) | Shielding | Material - Core | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | Nonstandard | 2.4 A | Surface Mount | 3.5 A | AEC-Q200 | 0.426 in | 0.43 in | 4.02 MHz | 68 µH | 155 °C | -55 °C | 252 mOhm | 100 kHz | 20 % | 0.174 in | Shielded | Metal Composite | |
 Vishay Dale | 4-SMD | 9.8 A | Surface Mount | 9.2 A | AEC-Q200 | 0.426 in | 0.426 in | 4.7 µH | 155 °C | -55 °C | 15.32 mOhm | 100 kHz | 20 % | 0.169 in | Shielded | Wirewound |
