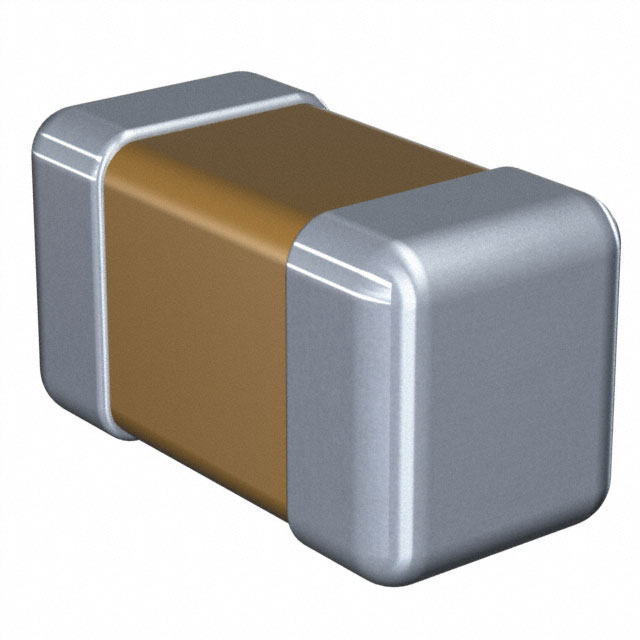

C0603W Series
Manufacturer: KEMET
Beta
⌘K
1500PF 630V ROHS COMPLIANT: YES
| Part | Features | Mounting Type | Applications | Voltage - Rated | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Capacitance | Thickness (Max) [Max] [z] | Thickness (Max) | Temperature Coefficient | Package / Case | Package / Case | Voltage - Rated | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | ArcShield™ High Voltage Low ESL Soft Termination | MLCC Surface Mount | Boardflex Sensitive | 630 V | 10 % | -55 C | 125 °C | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 1500 pF | 0.035 in | 0.9 mm | X7R | 1608 Metric | 0603 | ||
KEMET | ArcShield™ High Voltage Low ESL Soft Termination | MLCC Surface Mount | Boardflex Sensitive | 1000 V | 10 % | -55 C | 125 °C | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 0.001 µF | 0.035 in | 0.9 mm | X7R | 1608 Metric | 0603 | 1 kV | |
KEMET | ArcShield™ High Voltage Low ESL Soft Termination | MLCC Surface Mount | Boardflex Sensitive | 500 V | 10 % | -55 C | 125 °C | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 0.001 µF | 0.035 in | 0.9 mm | X7R | 1608 Metric | 0603 | ||
 KEMET | ArcShield™ High Voltage Low ESL Soft Termination | MLCC Surface Mount | Automotive Boardflex Sensitive | 1000 V | 10 % | -55 C | 125 °C | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 0.001 µF | 0.035 in | 0.9 mm | X7R | 1608 Metric | 0603 | 1 kV | AEC-Q200 |
