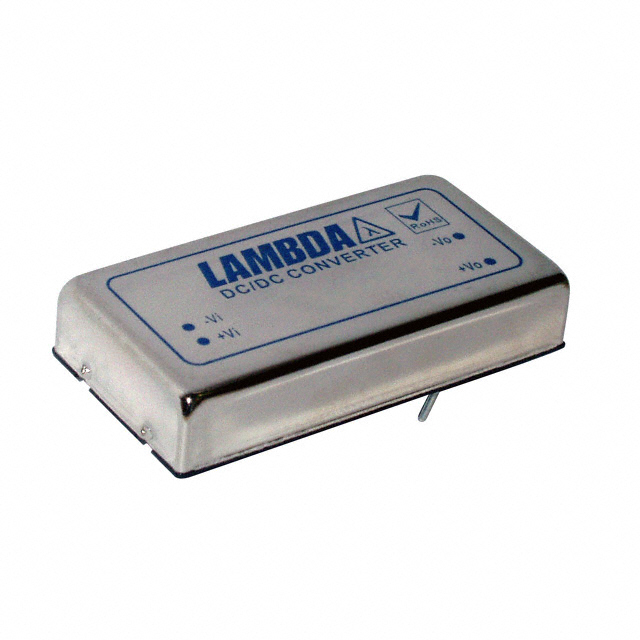

PXD15 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 15 W, 2 OUTPUT, 12 V, 625 MA

Part	Features	Mounting Type	Voltage - Output 1	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension	Voltage - Output 2	Type	Power (Watts)	Number of Outputs	Voltage - Input (Min) [Min]	Efficiency	Package / Case
TDK Corporation PXD15-24D12	OCP OVP SCP	Through Hole	12 V	1.6 kV	ITE (Commercial)	36 V	625 mA	625 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm	-12 V	Isolated Module	15 W	2	18 V	86 %	6-DIP Module 4 Leads
TDK Corporation PXD15-48D12	OCP OVP SCP	Through Hole	12 V	1.6 kV	ITE (Commercial)	75 V	625 mA	625 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm	-12 V	Isolated Module	15 W	2	36 V	88 %	6-DIP Module 4 Leads
TDK Corporation PXD15-12S15	OCP OVP SCP	Through Hole	15 V	1.6 kV	ITE (Commercial)	18 V		1 A	0.4 in 10.2 mm 25.4 mm 50.8 mm		Isolated Module	15 W	1	9 V	86 %	6-DIP Module 4 Leads
TDK Corporation PXD15-48S3P3	OCP OVP SCP	Through Hole	3.3 V	1.6 kV	ITE (Commercial)	75 V		4 A	0.4 in 10.2 mm 25.4 mm 50.8 mm		Isolated Module	15 W	1	36 V	81 %	6-DIP Module 4 Leads
TDK Corporation PXD15-24S05	OCP OVP SCP	Through Hole	5 V	1.6 kV	ITE (Commercial)	36 V		3 A	0.4 in 10.2 mm 25.4 mm 50.8 mm		Isolated Module	15 W	1	18 V	84 %	6-DIP Module 4 Leads
TDK Corporation PXD15-12S12	OCP OVP SCP	Through Hole	12 V	1.6 kV	ITE (Commercial)	18 V		1.25 A	0.4 in 10.2 mm 25.4 mm 50.8 mm		Isolated Module	15 W	1	9 V		6-DIP Module 4 Leads
