1SC0450 Series

Catalog

IC GATE DRVR HI/LOW SIDE MODULE

Part	Driven Configuration	Rise / Fall Time (Typ)	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	High Side Voltage - Max (Bootstrap) [Max]	Number of Drivers	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Mounting Type	Supplier Device Package

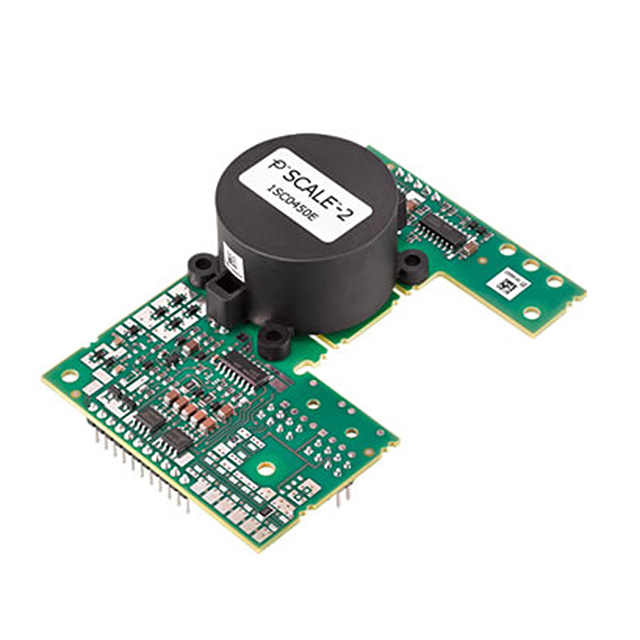

POWER INTEGRATIONS 1SC0450E2B0-65	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	6500 V	1	50 A	50 A	IGBT	Surface Mount	Module

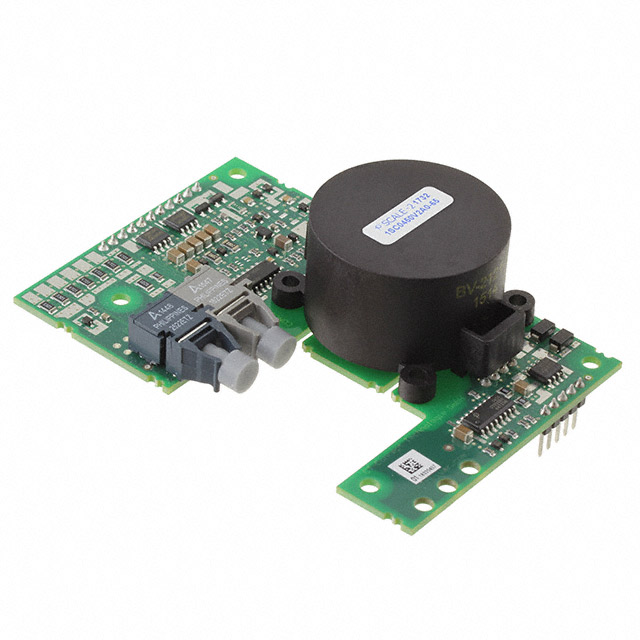

POWER INTEGRATIONS 1SC0450V2A0-65	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	6500 V	1	50 A	50 A	IGBT	Surface Mount	Module

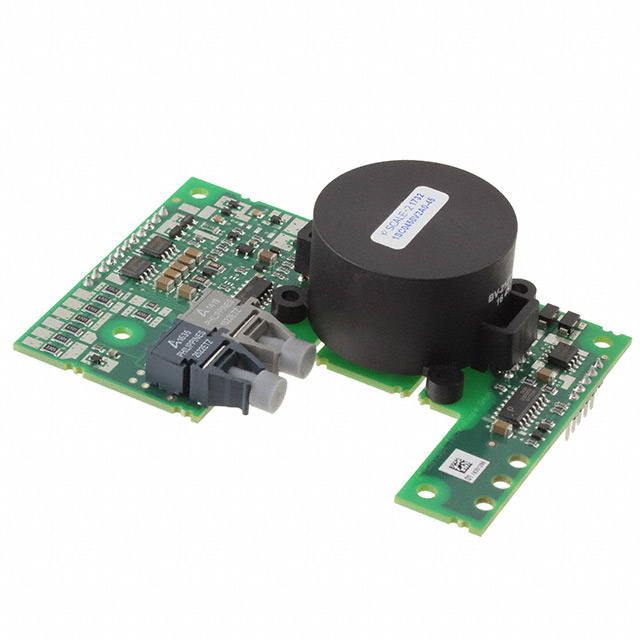

POWER INTEGRATIONS 1SC0450V2A0-45	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	4500 V	1	50 A	50 A	IGBT	Surface Mount	Module

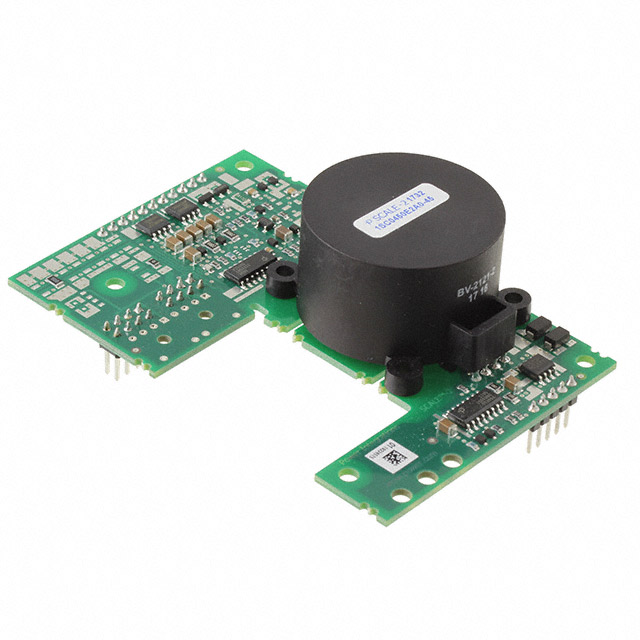

POWER INTEGRATIONS 1SC0450E2A0-45	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	4500 V	1	50 A	50 A	IGBT	Surface Mount	Module
POWER INTEGRATIONS 1SC0450V2B0-45	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	4500 V	1	50 A	50 A	IGBT	Surface Mount	Module

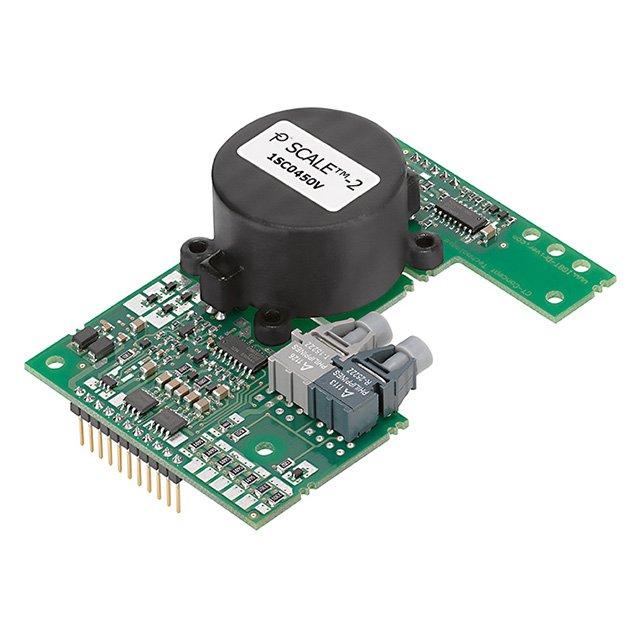

POWER INTEGRATIONS 1SC0450V2B0-65	High-Side or Low-Side	25 ns 30 ns	15.5 V	14.5 V	Single	Module	85 C	-40 ¯C	6500 V	1	50 A	50 A	IGBT	Surface Mount	Module
