Multi-Con-X Series

Catalog

CIRCULAR CONNECTOR, MULTI-CON-X INSTA-CLICK SERIES, CABLE MOUNT PLUG, 8 CONTACTS, CRIMP PIN

...

Part	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Features	Primary Material	Insert Material	Fastening Type	Orientation	Shielding	Mounting Type	Contact Material	Connector Type	Termination	Material Flammability Rating	Current Rating (Amps)	Shell Finish	Shell Material	Cable Opening	Cable Opening	Mounting Feature
SWITCHCRAFT/CONXALL W5280-8PG-P-518	4.57 mm	0.18 "	0.2 "	5.08 mm	Black	600 VAC	85 °C	-40 C	IP67 - Dust Tight Waterproof	Varies by Wire Gauge	8	Thermoplastic	Gold	Backshell UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Copper Alloy	Plug Male Pins	Crimp	UL94 HB

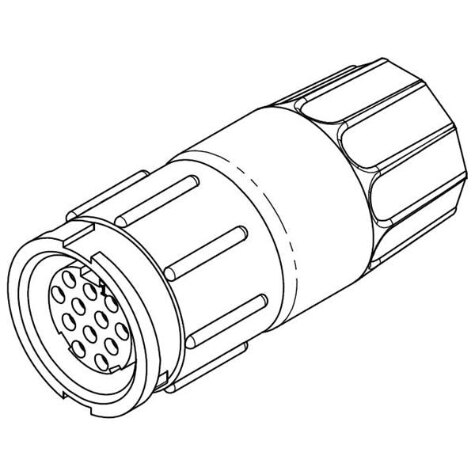

SWITCHCRAFT/CONXALL W5282-12SG-321					Black	600 V			IP67 - Dust Tight Waterproof		12	Thermoplastic	Gold	Backshell	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Brass	Receptacle Female Sockets
SWITCHCRAFT/CONXALL SF3282-7ASG-540					Black Silver	600 VAC	85 °C	-40 C	IP66 IP67 IP68		7	Polybutylene Terephthalate (PBT)	Gold	Backshell Cable Clamp Coupling Nut	Metal	Polybutylene Terephthalate (PBT)	Threaded	Keyed	Shielded	Free Hanging (In-Line)	Brass	Plug Female Sockets			13 A	Nickel	Brass	10.16 mm	0.4 in

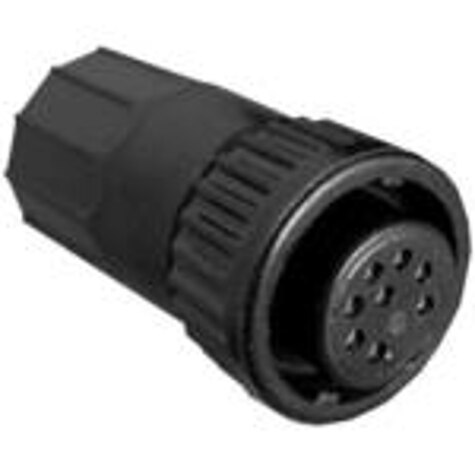

SWITCHCRAFT/CONXALL 3380-5SG-521	5.33 mm	0.21 in	0.23 in	5.84 mm	Black	600 V	115 °C	-40 C	Weathertight		5	Nylon Polyamide (PA)	Gold	Backshell Cable Clamp	Plastic		Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Brass	Plug Female Sockets	Crimp
SWITCHCRAFT/CONXALL W5280-12SG-530	7.62 mm	0.3 in	0.32 in	8.13 mm	Black	600 V			IP67 - Dust Tight Waterproof		12	Thermoplastic	Gold	Backshell Cable Clamp	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Crimp
SWITCHCRAFT/CONXALL W4291-7SG-P-3ES					Black	600 VAC	85 °C	-40 C	IP67 - Dust Tight Waterproof	Varies by Wire Gauge	7		Gold	UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Panel Mount	Copper Alloy	Receptacle Female Sockets	Solder	UL94 HB						Bulkhead - Front Side Nut
SWITCHCRAFT/CONXALL W3280-11PG-321	5.33 mm	0.21 in	0.23 in	5.84 mm	Black	600 V			IP67 - Dust Tight Waterproof		11	Thermoplastic	Gold	Backshell Coupling Nut	Plastic	Thermoplastic	Bayonet Lock	E	Unshielded	Free Hanging (In-Line)	Brass	Plug Male Pins	Crimp
SWITCHCRAFT/CONXALL W5282-11PG-P-330	7.62 mm	0.3 in	0.32 in	8.13 mm	Black	600 VAC	85 °C	-40 C	IP67 - Dust Tight Waterproof	Varies by Wire Gauge	11	Thermoplastic	Gold	Backshell UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Copper Alloy	Plug Male Pins		UL94 HB
SWITCHCRAFT/CONXALL W4291-5PG-P-3ES					Black	600 VAC	85 °C	-40 C	IP67 - Dust Tight Waterproof	Varies by Wire Gauge	5		Gold	UV Resistant	Plastic	Thermoplastic	Bayonet Lock	Keyed	Unshielded	Panel Mount	Copper Alloy	Receptacle Male Pins	Solder	UL94 HB						Bulkhead - Front Side Nut
SWITCHCRAFT/CONXALL 5380-4SG-321	5.33 mm	0.21 in	0.23 in	5.84 mm	Black	600 V	115 °C	-40 C	Weathertight		4	Nylon Polyamide (PA)	Gold	Backshell	Plastic		Bayonet Lock	Keyed	Unshielded	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Crimp
