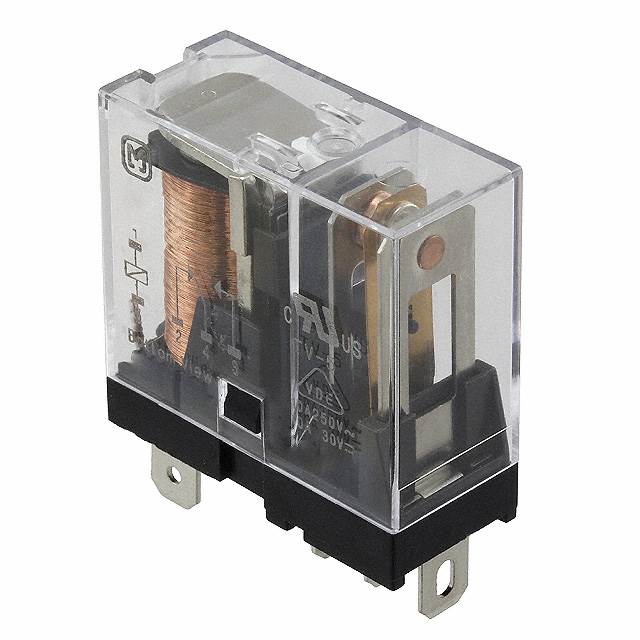

AHN122 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 12V
| Part | Coil Resistance | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Approval Agency | Switching Voltage [Max] | Load - Max Switching | Contact Form | Termination Style | Coil Voltage | Operate Time | Must Operate Voltage | Coil Current | Release Time | Features | Contact Material | Must Release Voltage | Relay Type | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 270 Ohms | Socketable | 70 °C | -40 C | Non Latching | cURus VDE | 30 VDC 250 VAC | 480 W 4000 VA | SPDT (1 Form C) | Plug In | 12 VDC | 15 ms | 8.4 VDC | 44.4 mA | 20 ms | Diode | Silver Tin Oxide (AgSnO) | 1.8 VDC | General Purpose | 16 A |
Panasonic Electronic Components | 1.09 kOhms | Socketable | 70 °C | -40 C | Non Latching | cURus VDE | 30 VDC 250 VAC | 480 W 4000 VA | SPDT (1 Form C) | Plug In | 24 VDC | 15 ms | 16.8 VDC | 22 mA | 20 ms | Diode | Silver Tin Oxide (AgSnO) | 3.6 VDC | General Purpose | 16 A |
