GEC36S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Connector Type	Current Rating (Amps)	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Contact Material	Contact Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Number of Positions Loaded	Number of Rows	Number of Positions	Mounting Type	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]

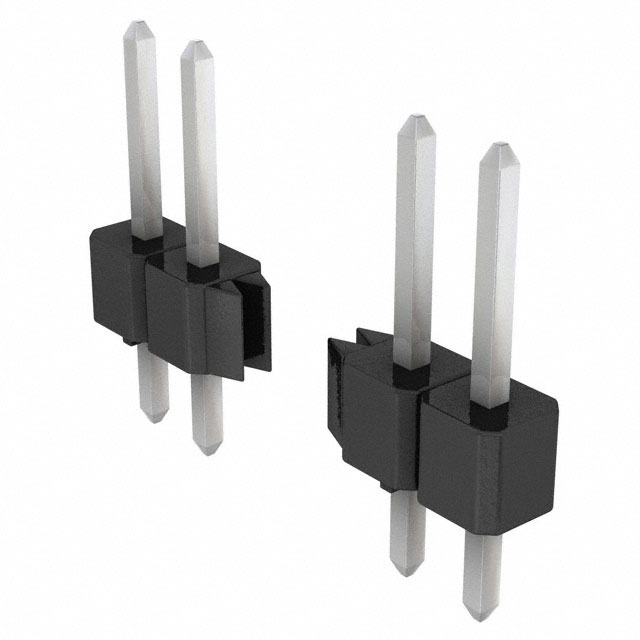

Sullins Connector Solutions GEC36SAAN	Breakaway Header	3 A	UL94 V-0	0.12 in	3.05 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Tin	0.45 "	11.43 mm	-65 ░C	150 °C	0.23 in	5.84 mm	Unshrouded	Square	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Board to Board Cable	2.54 çm	100 çin	Nylon 9T Polyamide (PA9T)	Solder	All	1	36	Through Hole	Black
Sullins Connector Solutions GEC36SBAN	Breakaway Header	3 A	UL94 V-0			2.54 µm	100 µin	0.1 in	2.54 mm	Tin			-65 ░C	150 °C	0.23 in	5.84 mm	Unshrouded	Square	Push-Pull	0.14 in	3.56 mm	Phosphor Bronze	Male Pin	Board to Board Cable	2.54 çm	100 çin	Nylon 9T Polyamide (PA9T)	Solder	All	1	36	Through Hole Right Angle	Black	2.54 mm	0.1 in

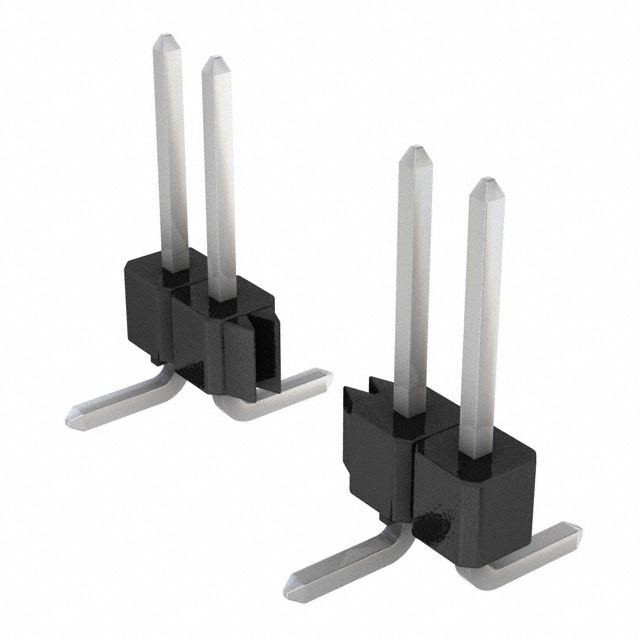

Sullins Connector Solutions GEC36SFBN-M30	Breakaway Header	3 A	UL94 V-0			2.54 µm	100 µin	0.1 in	2.54 mm	Tin			-65 ░C	150 °C	0.318 "		Unshrouded	Square	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Board to Board Cable	2.54 çm	100 çin	Nylon 9T Polyamide (PA9T)	Solder	All	1	36	Surface Mount	Black			8.08 mm
Sullins Connector Solutions GEC36SGSN-M89	Breakaway Header	3 A	UL94 V-0			2.54 µm	100 µin	0.1 in	2.54 mm	Tin			-65 ░C	150 °C	0.318 "		Unshrouded	Square	Push-Pull	0.14 in	3.56 mm	Phosphor Bronze	Male Pin	Board to Board Cable	2.54 çm	100 çin	Nylon 9T Polyamide (PA9T)	Solder	All	1	36	Surface Mount Right Angle	Black			8.08 mm
