MCO Series
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
| Part | Voltage - UL | Header Orientation | Positions Per Level | Termination Style | Number of Positions | Color | Type | Mounting Type | Current - UL | Number of Levels | Pitch | Pitch | Material Flammability Rating | Insulation Height | Insulation Height | Contact Mating Finish | Voltage - IEC | Current - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

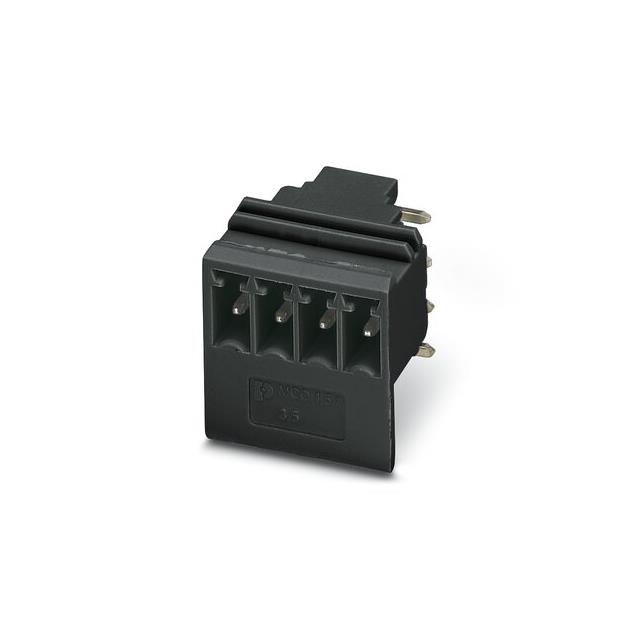

 Phoenix Contact | 300 V | 90° Right Angle | 4 | Solder | 4 | Black | Header Male Pins Shrouded (4 Side) | Through Hole | 8 A | 1 | 3.5 mm | 0.138 " | ||||||
 Phoenix Contact | 300 V | 90° Right Angle Vertical | 9 | Solder | 9 | Green | Header Male Pins Shrouded (2 Side) | Through Hole | 8 A | 1 | 3.81 mm | 0.15 in | UL94 V-0 | 35.68 mm | 1.405 in | Tin | 200 V | 8 A |

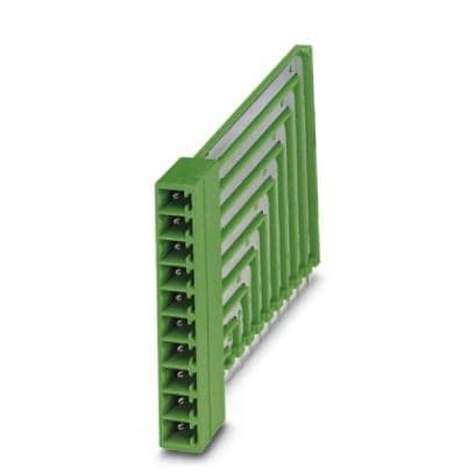

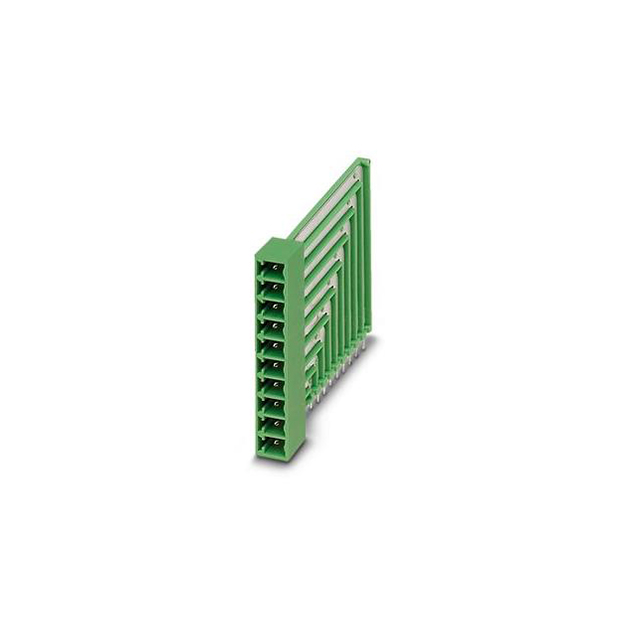

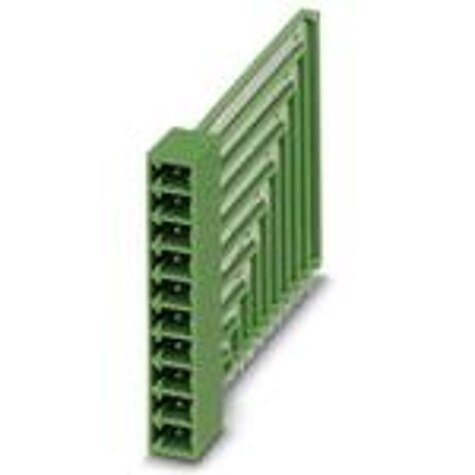

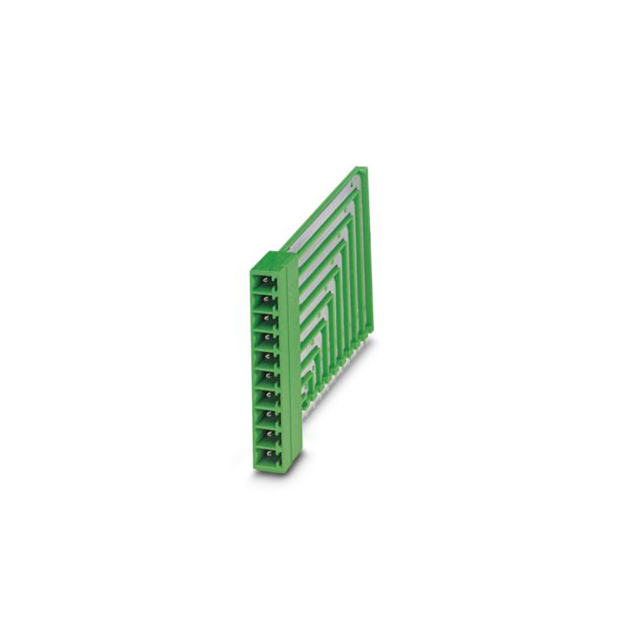

 Phoenix Contact | 300 V | 90° Right Angle Vertical | 10 | Solder | 10 | Green | Header Male Pins Shrouded (2 Side) | Through Hole | 8 A | 1 | 3.81 mm | 0.15 in | UL94 V-0 | 39.49 mm | 1.555 " | Tin | 200 V | 8 A |
 Phoenix Contact | 300 V | 90° Right Angle Vertical | 10 | Solder | 10 | Green | Header Male Pins Shrouded (2 Side) | Through Hole | 8 A | 1 | 3.81 mm | 0.15 in | UL94 V-0 | 39.49 mm | 1.555 " | Tin | 200 V | 8 A |

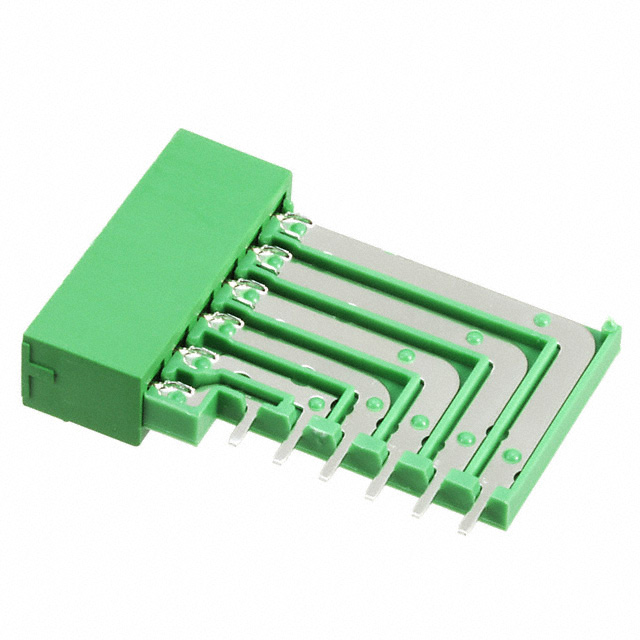

 Phoenix Contact | 300 V | 90° Right Angle Vertical | 6 | Solder | 6 | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 8 A | 1 | 3.81 mm | 0.15 in | UL94 V-0 | 24.25 mm | 0.955 in | Tin | 200 V | 8 A |
