0997-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

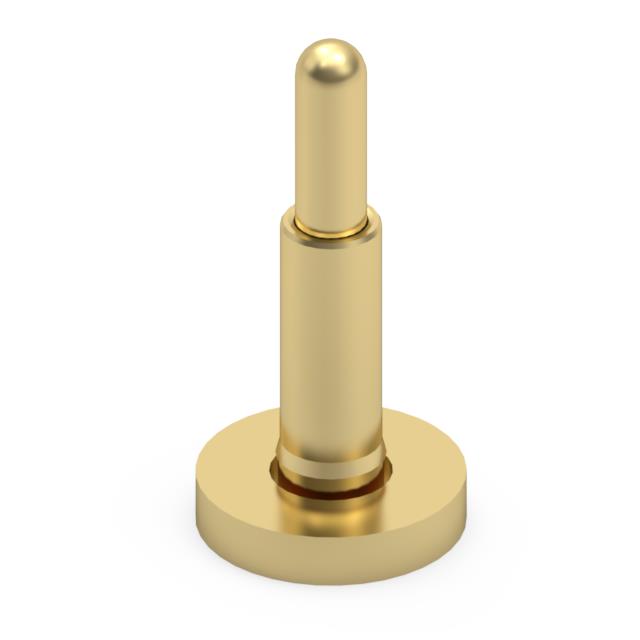

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Recommended Working Height | Recommended Working Height | Mating Cycles | Operating Force - Mid Compression | Mounting Type | Contact Finish | Current Rating (Amps) | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | 0.26 in | 6.6 mm | Brass Alloy | 8 mm | 0.315 in | 0.287 in | 7.3 mm | 1000000 | 60 gf | Surface Mount | Gold | 5.2 A | 0.159 in | 4.04 mm | 10 gf |
