LGA Series

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Catalog

Switching Power Supplies 150W 24V 6.3A VH(J.S.T.) Conn Type

Part	Current - Output 1	Voltage - Output 1	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Applications	Size / Dimension [z]	Size / Dimension [y]
Cosel USA, Inc. LGA50A-5-S	10 A	5 V	Chassis Mount	28.4 mm	1.97 in	5.2 in	132.1 mm	50 mm	1.12 "	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Open Frame	79 %	ITE (Commercial)
Cosel USA, Inc. LGA100A-24-SNC	4.3 A	24 V	Chassis Mount		2.44 "	6.1 "	154.9 mm		1.4 "	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Enclosed	85.5 %	ITE (Commercial)	35.6 mm	62 mm
Cosel USA, Inc. LGA50A-24-C	2.5 A	24 V	Chassis Mount	28.4 mm	1.97 in	5.2 in	132.1 mm	50 mm	1.12 "	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Open Frame	85 %	ITE (Commercial)

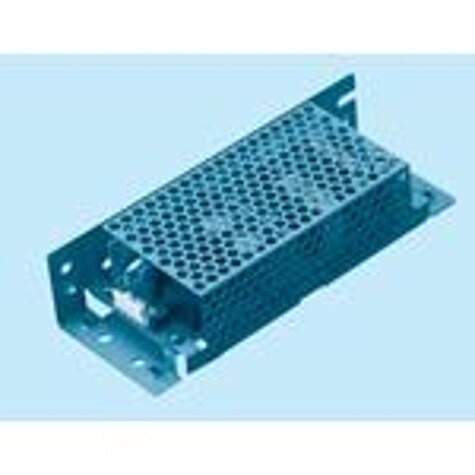

Cosel USA, Inc. LGA50A-12-SCJ1	4.3 A	12 V	Chassis Mount	28.4 mm	1.97 in	5.2 in	132.1 mm	50 mm	1.12 "	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Open Frame		ITE (Commercial)
Cosel USA, Inc. LGA240A-24-H	10 A	24 V	Chassis Mount	48.5 mm	3.31 in	7.09 in	180.1 mm	84.1 mm	1.91 in	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Open Frame	86.5 %	ITE (Commercial)
Cosel USA, Inc. LGA50A-12	4.3 A	12 V	Chassis Mount	28.4 mm	1.97 in	5.2 in	132.1 mm	50 mm	1.12 "	2000 V	1	CE cURus TUV	85 VAC	132 VAC	-10 °C	60 °C	Open Frame		ITE (Commercial)
