3RT2625 Series

Manufacturer: Siemens

Catalog

CAP CONTACTOR 16.7KVAR 1NO+2NC 9

Part	Operate Time	Release Time	Coil Power	Features	Contact Form	Mounting Type	Termination Style	Switching Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage [Min]	Coil Voltage [Max]	Contact Rating (Current)	Coil Voltage	Must Operate Voltage
Siemens 3RT26251NF35	70 ms	50 ms	12 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C	95 VAC	130 VAC/DC	24 A

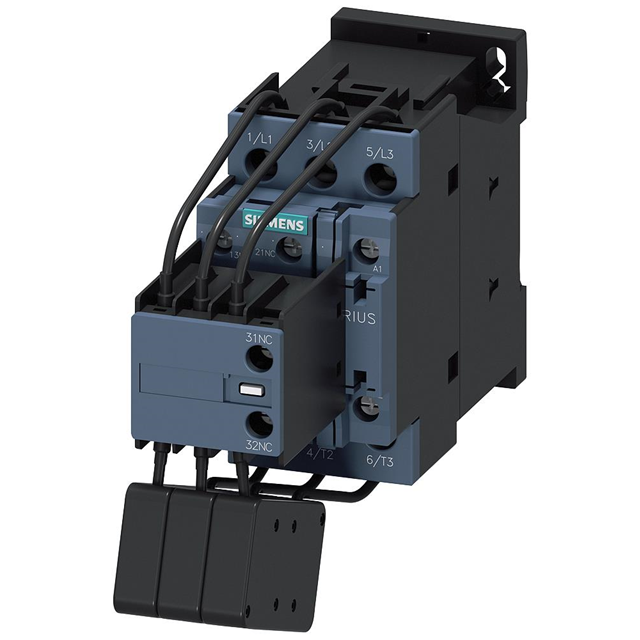

Siemens 3RT26251AB05	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	24 VAC	19.2 VAC
Siemens 3RT26251AF05	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	110 VAC/DC	88 VAC/DC
Siemens 3RT26251NB35	70 ms	50 ms	6.7 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C	21 VAC/DC	28 VAC/DC	24 A
Siemens 3RT26251AK65	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	120 VAC	96 VAC
Siemens 3RT26251AP65	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	240 VAC/DC	192 VAC
Siemens 3RT26251AP05	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	230 VAC	184 VAC
Siemens 3RT26251AC25	40 ms	16 ms	77 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	24 VAC	19.2 VAC
Siemens 3RT26251NP35	70 ms	50 ms	14.7 VA	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C	200 VAC/DC	280 VAC/DC	24 A

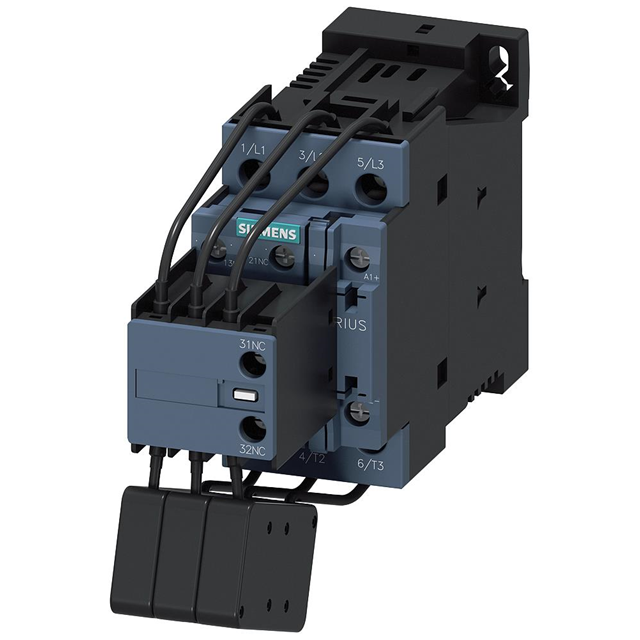

Siemens 3RT26251BB45	170 ms	18 ms	5.9 W	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	690 VAC	-25 °C	60 °C			24 A	24 VDC	19.2 VDC
