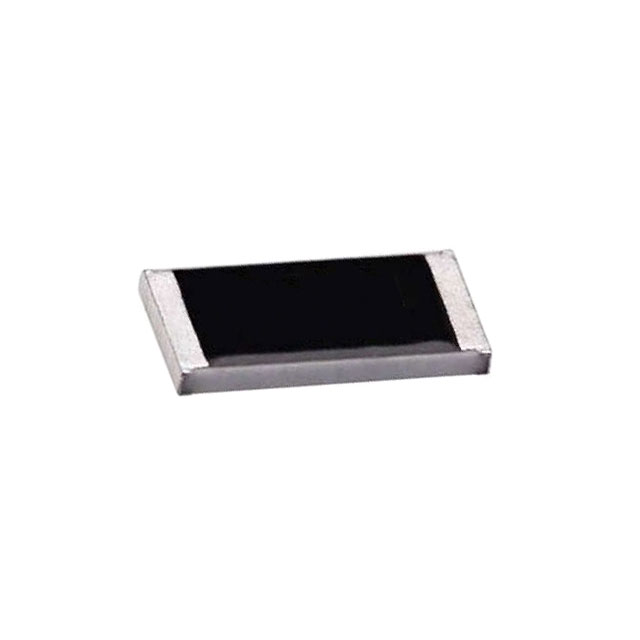

LVM Series

Manufacturer: Ohmite

Catalog

CURRENT SENSE RESISTORS - SMD 0.5W 0.050 OHM 1%

Part	Resistance	Features	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)
Ohmite LVM12FTR050E-TR	0.05 Ohms	Current Sense	1206	1206 (3216 Metric)	155 C	-55 C	1 %	0.7 mm	0.028 "	100 ppm/°C	2	0.5 W	0.5 W
Ohmite LVM06FTR050E-TR	0.05 Ohms	Current Sense		0603	155 C	-55 C	1 %			100 ppm/°C	2	0.125 W	0.125 W	0.061 in	0.85 mm	1.55 mm	0.033 "	1608 Metric	0.02 in	0.5 mm
