NPTC331 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

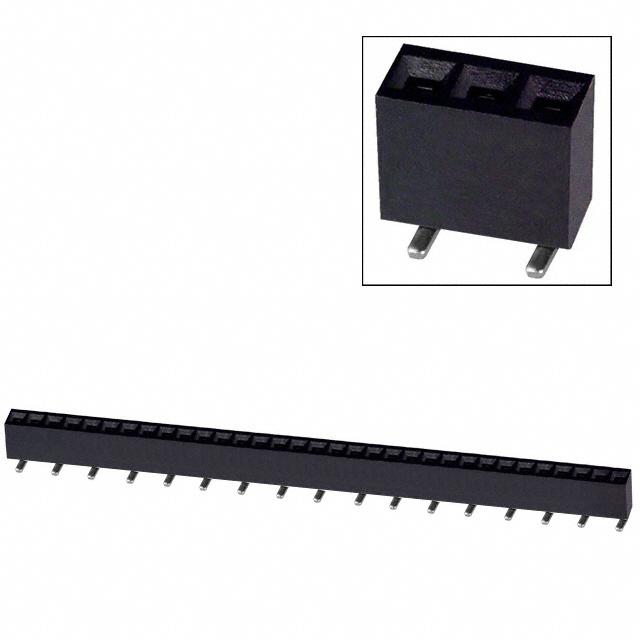

CONN HDR 33POS 0.1 TIN SMD
| Part | Contact Material | Insulation Material | Contact Shape | Mounting Type | Insulation Color | Termination | Contact Finish - Post | Number of Rows | Number of Positions Loaded | Material Flammability Rating | Connector Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Voltage Rating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions [custom] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Surface Mount | Black | Solder | Tin | 1 | All | UL94 V-0 | Header Top or Bottom Entry | 0.1 " | 2.54 mm | 3 A | 250 V | 0.28 in | 7.1 mm | -40 C | 105 ░C | Push-Pull | 33 | Female Socket |
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Surface Mount | Solder | Tin | 1 | All | UL94 V-0 | Header Top or Bottom Entry | 0.1 " | 2.54 mm | 3 A | 250 V | 0.28 in | 7.1 mm | -40 C | 105 ░C | Push-Pull | 33 | Female Socket |
