RPMH-0.5 Series

Non-Isolated DC/DC Converters 13.5-65Vi 12Vo 500mA 7.2-13.2VTrim Reg

Manufacturer: Recom Power

Catalog

Non-Isolated DC/DC Converters 13.5-65Vi 12Vo 500mA 7.2-13.2VTrim Reg

Catalog

Non-Isolated DC/DC Converters 13.5-65Vi 12Vo 500mA 7.2-13.2VTrim Reg

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Package / Case	Number of Outputs	Control Features

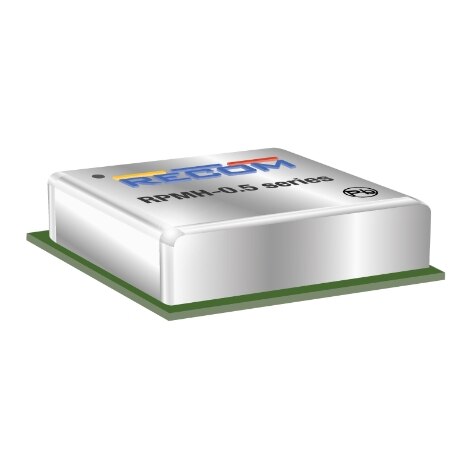

Recom Power RPMH5.0-0.5	65 V	500 mA	5 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote Sense	6 V	77 %	Surface Mount	25-BLGA Module	1
Recom Power RPMH24-0.5-CT	65 V	500 mA	24 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote On/Off Remote Sense	25.5 V	89 %	Surface Mount	25-BLGA Module	1	Active Floating Enable
Recom Power RPMH3.3-0.5	65 V	500 mA	3.3 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote Sense	4.3 V	72 %	Surface Mount	25-BLGA Module	1
Recom Power RPMH15-0.5	65 V	500 mA	15 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote Sense	16.5 V	85 %	Surface Mount	25-BLGA Module	1
Recom Power RPMH12-0.5	65 V	500 mA	12 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote Sense	13.5 V		Surface Mount	25-BLGA Module	1
Recom Power RPMH12-0.5-CT	65 V	500 mA	12 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote On/Off Remote Sense	13.5 V		Surface Mount	25-BLGA Module	1	Active Floating Enable
Recom Power RPMH24-0.5	65 V	500 mA	24 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote Sense	25.5 V	89 %	Surface Mount	25-BLGA Module	1
Recom Power RPMH15-0.5-CT	65 V	500 mA	15 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote On/Off Remote Sense	16.5 V	85 %	Surface Mount	25-BLGA Module	1	Active Floating Enable

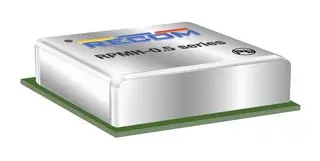

Recom Power RPMH5.0-0.5-CT	65 V	500 mA	5 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote On/Off Remote Sense	6 V	77 %	Surface Mount	25-BLGA Module	1	Active Floating Enable
Recom Power RPMH3.3-0.5-CT	65 V	500 mA	3.3 V	Non-Isolated PoL Module	105 C	-40 °C	ITE (Commercial)	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	Adjustable Output Remote On/Off Remote Sense	4.3 V	72 %	Surface Mount	25-BLGA Module	1	Active Floating Enable
