S13B-ZES Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

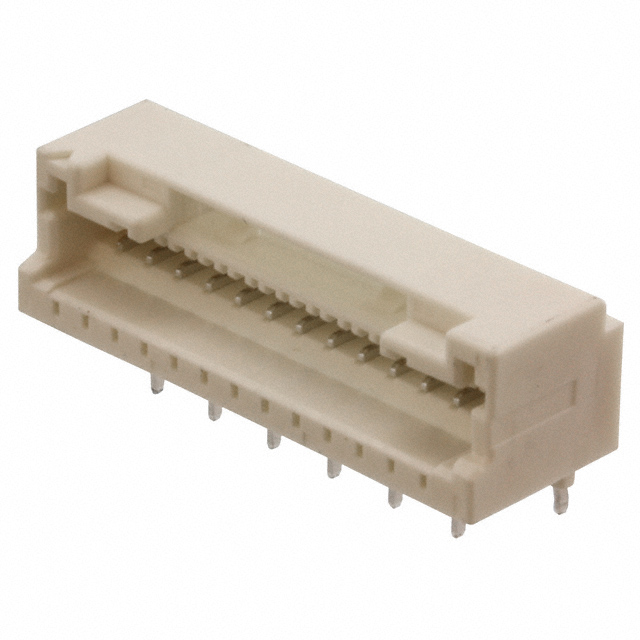

CONN HEADER R/A 13POS 1.5MM
| Part | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Material | Contact Shape | Insulation Color | Contact Material | Contact Finish - Post | Contact Type | Material Flammability Rating | Termination | Current Rating (Amps) | Style | Features | Voltage Rating | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Number of Positions | Number of Rows | Number of Positions Loaded | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | 85 °C | -25 °C | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | Rectangular | Natural | Copper Alloy | Tin | Outer Shroud Contact | UL94 V-0 | Kinked Pin Solder | 2 A | Board to Cable/Wire | Board Guide | 100 V | Locking Ramp | 0.134 " | 3.4 mm | 13 | 1 | All | Right Angle Through Hole |
