PRASA1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ROCKER SWITCHES SPST ON-OFF QC PNL PWR ROCKER SWITCH
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Actuator Marking | Switch Function | Circuit | Ingress Protection | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Type | Current Rating (Amps) | Termination Style | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

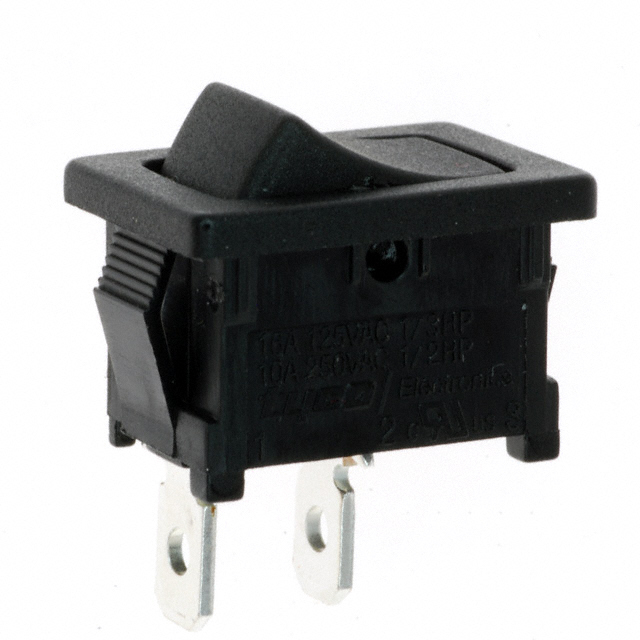

 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | 125 V | No Marking | On-Off | SPST | Dust Proof | Panel Mount Snap-In | 19.2 mm | 13 mm | Concave (Curved) | 16 A | Quick Connect | Black | 85 °C | -20 ░C | ENEC UL VDE |

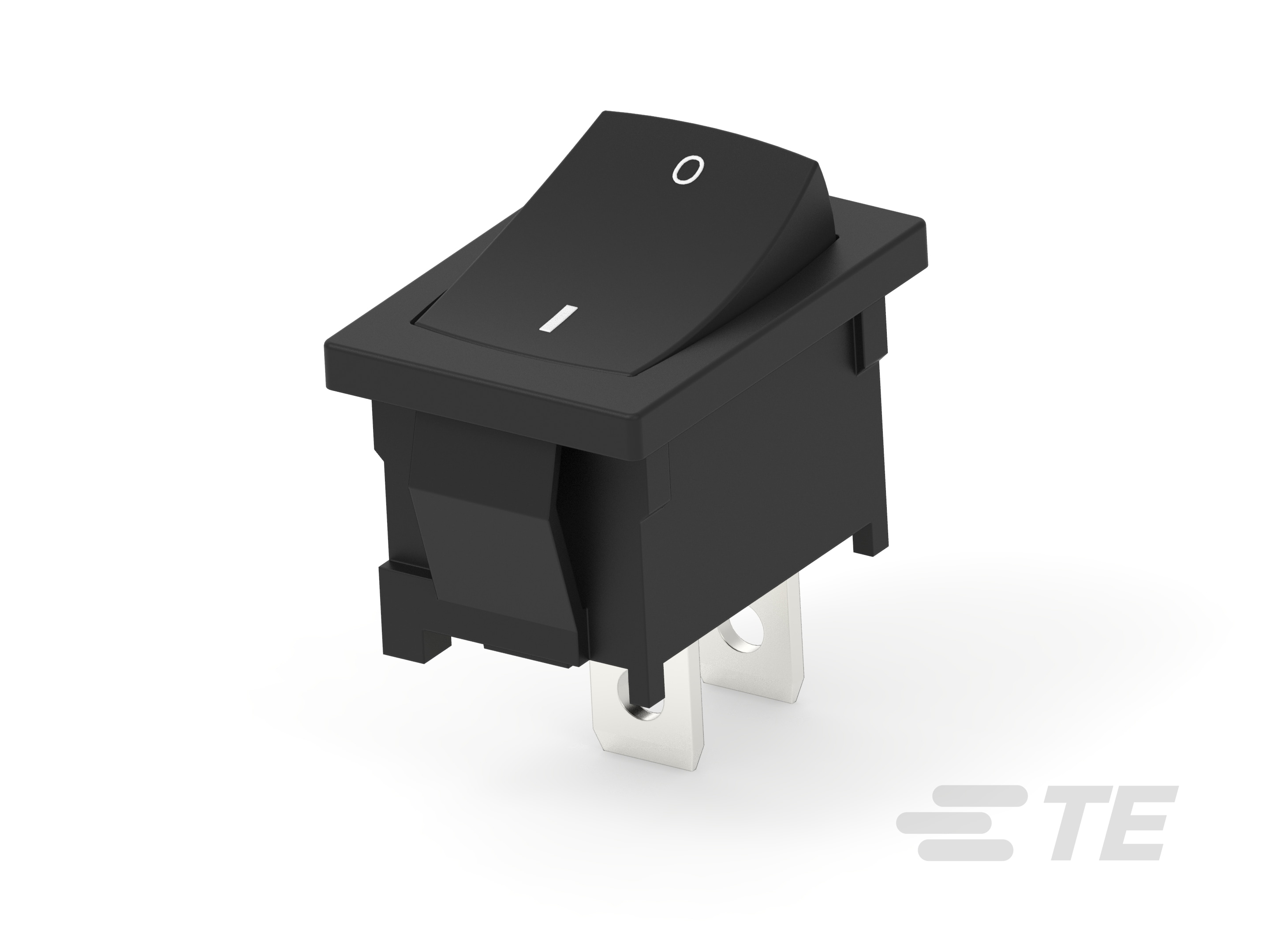

 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | 125 V | O - | On-Off | SPST | Dust Proof | Panel Mount Snap-In | 19.2 mm | 13 mm | Concave (Curved) | 16 A | Quick Connect | Black | 85 °C | -20 ░C | ENEC UL VDE |
