CES-703316 Series

Catalog

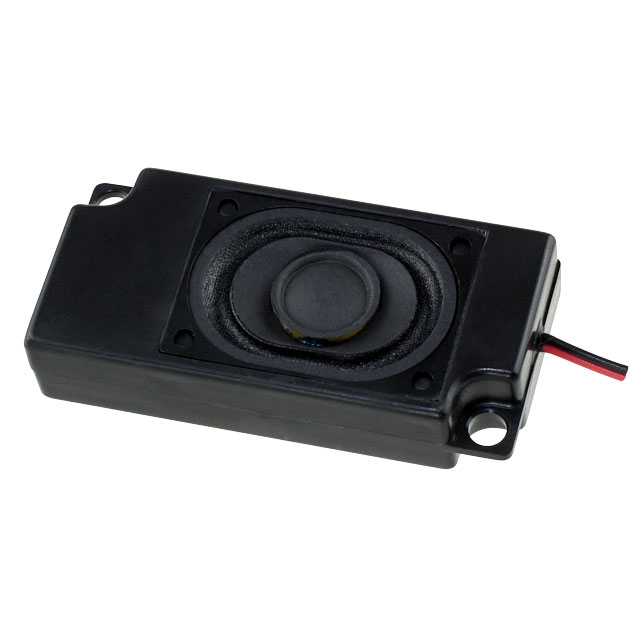

SPEAKER 8OHM 2W TOP PORT 102DB

Part	Power - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Cone	Shape	Efficiency - Type	Impedance	Frequency Range [Min]	Frequency Range [Max]	Efficiency - dBA	Efficiency - Testing	Technology	Termination	Power - Max [Max]	Port Location	Material - Magnet	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Type	Operating Temperature [Min]	Operating Temperature [Max]	Distortion Rating [Max]
Same Sky (Formerly CUI Devices) CES-703316-28PM	2 W	16 mm	0.63 in	Paper/Cloth	Rectangular	Sound Pressure Level (SPL)	8 Ohms	650 Hz	20 kHz	102 dBA	2 W/100mm	Magnetic	Wire Leads	3 W	Top	Nd-Fe-B	33 mm	70 mm	2.756 "	1.299 in	650 Hz	General Purpose Enclosure Included
Same Sky (Formerly CUI Devices) CES-703316-28PM	2 W	16 mm	0.63 in	Paper/Cloth	Rectangular	Sound Pressure Level (SPL)	8 Ohms	650 Hz	20 kHz	102 dBA	2 W/100mm	Magnetic	Wire Leads	3 W	Top	Nd-Fe-B	33 mm	70 mm	2.756 "	1.299 in	650 Hz	General Purpose Enclosure Included	-20 ░C	60 °C	10 %
