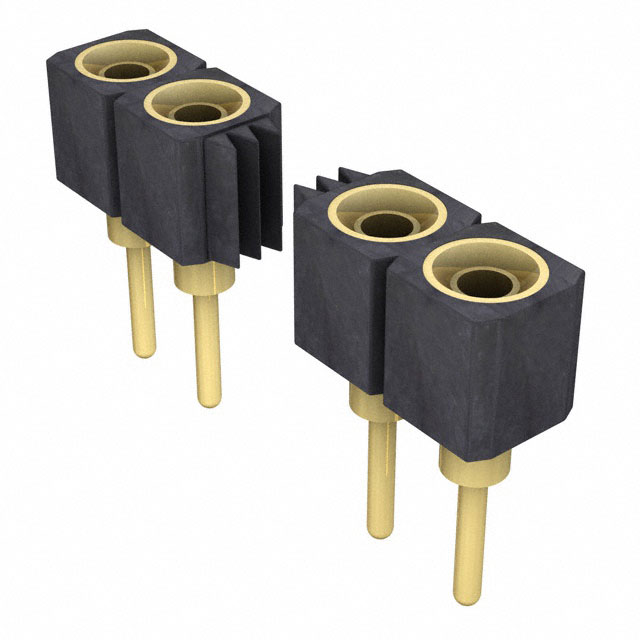

310-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 37POS 0.1 GOLD PCB

...

Part	Number of Rows	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Shape	Voltage Rating	Voltage Rating	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions Loaded	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions [custom]
Mill-Max Manufacturing Corp. 310-13-137-41-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	37
Mill-Max Manufacturing Corp. 310-13-151-41-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	51
Mill-Max Manufacturing Corp. 310-13-131-61-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm		31
Mill-Max Manufacturing Corp. 310-13-145-41-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	45
Mill-Max Manufacturing Corp. 310-13-132-61-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 310-13-106-61-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	6
Mill-Max Manufacturing Corp. 310-13-163-41-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	63
Mill-Max Manufacturing Corp. 310-13-145-61-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	45
Mill-Max Manufacturing Corp. 310-13-140-41-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	40
Mill-Max Manufacturing Corp. 310-13-160-61-001000	1	Gold	UL94 V-0	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	100 V	150 VDC	Gold	Receptacle	10 Áin	0.25 çm	Through Hole	All	Black	Push-Pull	-55 C	125 °C	3 A	0.76 Ám	30 Áin	Beryllium Copper	Solder	Female Socket	0.125 in	3.18 mm	60
