ECA-1EH Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUMINUM LYTIC 47UF 25V 20% (5 X 11MM) RADIAL 2.5MM 0.091A 1000H 105°C AMMO AUTOMOTIVE AEC-Q200

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Tolerance	Applications	Ripple Current @ High Frequency	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Capacitance	Mounting Type	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECA-1EHG470I	0.472 in	12 mm	Can Radial	0.197 in	5 mm	91 mA	20 %	General Purpose	136.5 mA	Polar	-55 C	105 ░C	25 VDC	47 µF	Through Hole	2.5 mm	0.098 in	1000 Hrs
Panasonic Electronic Components ECA-1EHG472		33.5 mm	Can Radial	0.63 in	16 mm	1.75 A	20 %	General Purpose	2.013 A	Polar	-55 C	105 ░C	25 VDC	4700 µF	Through Hole	7.5 mm	0.295 in	2000 Hrs	1.319 in
Panasonic Electronic Components ECA-1EHG331			Can Radial	0.315 in	8 mm	310 mA	20 %	General Purpose	465 mA	Polar	-55 C	105 ░C	25 VDC	330 µF	Through Hole	3.5 mm	0.138 in	1000 Hrs		0.492 in	12.5 mm
Panasonic Electronic Components ECA-1EHG471B	0.531 in		Can Radial	0.394 in	10 mm	380 mA	20 %	General Purpose	570 mA	Polar	-55 C	105 ░C	25 VDC	470 µF	Through Hole	5 mm	0.197 "	2000 Hrs		13.5 mm
Panasonic Electronic Components ECA-1EHG471E	0.531 in		Can Radial	0.394 in	10 mm	380 mA	20 %	General Purpose	570 mA	Polar	-55 C	105 ░C	25 VDC	470 µF	Through Hole	5 mm	0.197 "	2000 Hrs		13.5 mm
Panasonic Electronic Components ECA-1EHG221			Can Radial	0.315 in	8 mm	230 mA	20 %	General Purpose	345 mA	Polar	-55 C	105 ░C	25 VDC	220 µF	Through Hole	3.5 mm	0.138 in	1000 Hrs		0.492 in	12.5 mm
Panasonic Electronic Components ECA-1EHG221BJ			Can Radial	0.315 in	8 mm	230 mA	20 %	General Purpose	345 mA	Polar	-55 C	105 ░C	25 VDC	220 µF	Through Hole	3.5 mm	0.138 in	1000 Hrs		0.492 in	12.5 mm

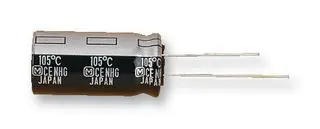

Panasonic Electronic Components ECA-1EHG101	0.48 in	12.2 mm	Can Radial	0.248 "	6.3 mm	130 mA	20 %	General Purpose	195 mA	Polar	-55 C	105 ░C	25 VDC	100 µF	Through Hole	2.5 mm	0.098 in	1000 Hrs
