1740198 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

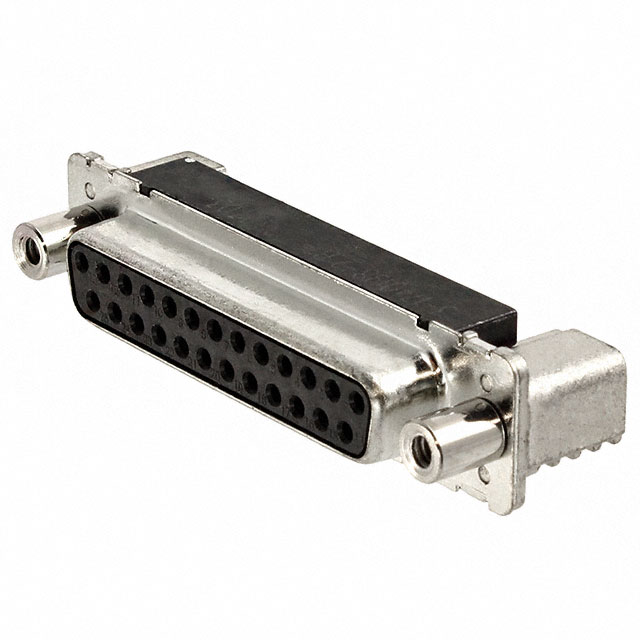

CONN D-SUB RCPT 25P SMD R/A SLDR
| Part | Dielectric Material | Features | Flange Feature | Shell Material, Finish | Number of Rows | Current Rating (Amps) | Termination | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Connector Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Board Guide Mounting Brackets | 4-40 Board Side | Nickel Plated Steel | 2 | 4.5 A | Solder | Signal | Gold | 105 ░C | -55 °C | Black | 31.5 µin | 0.8 µm | Surface Mount Right Angle | Receptacle Female Sockets | D-Sub | B DB | 3 | |
 TE Connectivity Raychem Cable Protection | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Board Guide | Female Screwlock (4-40) Mating Side | 2 | Solder | Signal | Gold | 105 ░C | -55 °C | Black | 31.5 µin | 0.8 µm | Surface Mount Right Angle | Receptacle Female Sockets | D-Sub | B DB | 3 | UL94 V-0 | ||
TE Connectivity Raychem Cable Protection | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Board Guide Mounting Brackets | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | 2 | 4.5 A | Solder | Signal | Gold | 105 ░C | -55 °C | Black | 31.5 µin | 0.8 µm | Surface Mount Right Angle | Receptacle Female Sockets | D-Sub | B DB | 3 |
