CMD11-21 Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K

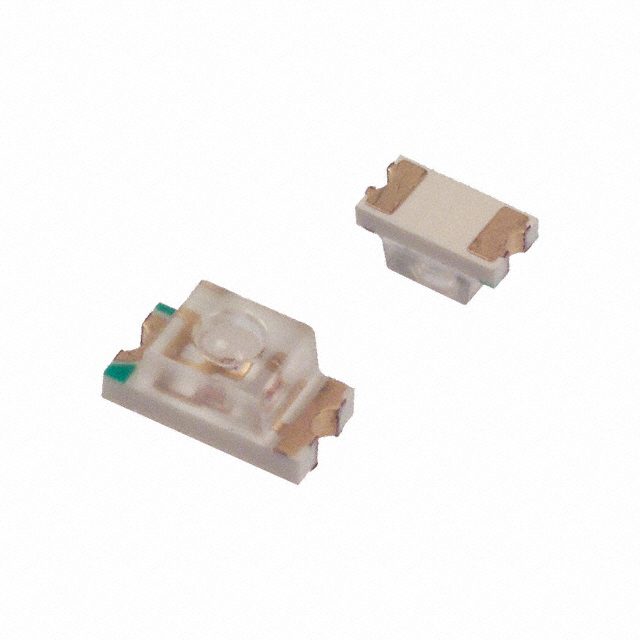

LED YELLOW CLEAR 1206 SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Lens Style | Lens Transparency | Package / Case | Height (Max) [z] | Supplier Device Package | Lens Size [diameter] | Configuration | Voltage - Forward (Vf) (Typ) | Mounting Type | Viewing Angle | Current - Test | Color | Millicandela Rating | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | 3 mm | 1.5 mm | Round with Flat Top | Clear | 1206 (3216 Metric) | 1.5 mm | 1206 | 1.1 mm | Standard | 2 V | Surface Mount | 20 ° | 20 mA | Yellow | 6 mcd | 585 nm |
Visual Communications Company - VCC | 3 mm | 1.5 mm | Round with Flat Top | Clear | 1206 (3216 Metric) | 1.5 mm | 1206 | 1.1 mm | Standard | 2.1 V | Surface Mount | 20 ° | 20 mA | Green | 7.5 mcd | 570 nm |
