78410 Series

Catalog

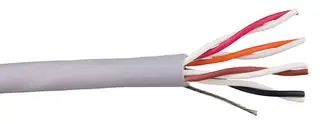

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, UNSHIELDED, 20 PAIR, 20 AWG, 0.616 MM², 100 FT, 30.5 M

Part	Features	Ratings	Voltage	Cable Type	Wire Gauge	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length [x]	Length [x]	Length	Length
ALPHA WIRE 78410 SL005	Biological Compatibility Rip Cord	ISO 10993 UL Style 21460	300 VDC	Multi-Pair	20 AWG	0.381 mm	0.015 in	Polyphenylene Ether Modified (mPPE)	19	32 AWG	Copper Tinned	80 °C	-40 C	Slate	40	0.498 in	12.65 mm	Polyphenylene Ether Modified (mPPE)	100 ft	30.5 m
ALPHA WIRE 78410 SL001	Biological Compatibility Rip Cord	ISO 10993 UL Style 21460	300 VDC	Multi-Pair	20 AWG	0.381 mm	0.015 in	Polyphenylene Ether Modified (mPPE)	19	32 AWG	Copper Tinned	80 °C	-40 C	Slate	40	0.498 in	12.65 mm	Polyphenylene Ether Modified (mPPE)			304.8 m	1000 ft
