QFR1212 Series

Catalog

FAN AXL 120X38MM 12VDC RECT CONN

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Termination	Weight [custom]	Weight [custom]	Air Flow	Air Flow	Power (Watts)	RPM	Approval Agency	Width [y]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Features	Noise	Voltage - Rated	Fan Type	Static Pressure	Static Pressure

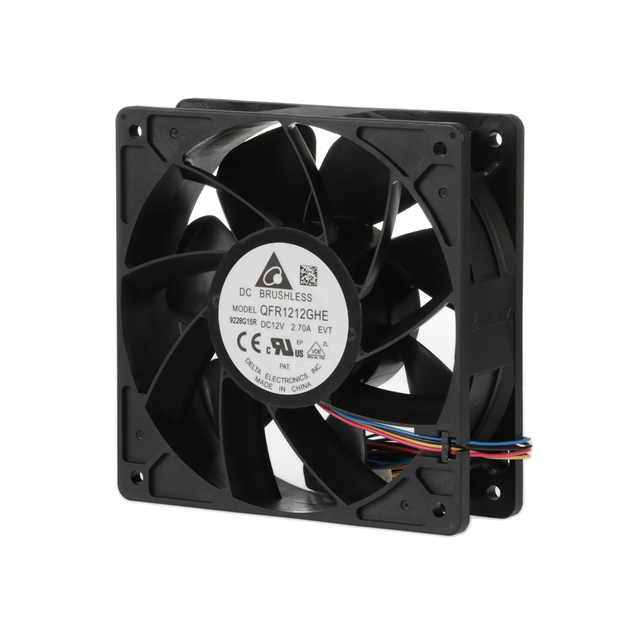

Delta Electronics QFR1212GHEEVT	Plastic	70000 Hrs	10.8 VDC	12.6 VDC	1.8 A	Plastic	4 Position Rectangular Connector	0.728 lb	330.22 g	5.89 m³/min	210.4 CFM	21.6 W	6000 RPM	CE CSA UL VDE	38 mm	Ball	-10 °C	60 °C	120 mm	120 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB(A)	12 VDC	Tubeaxial	1.17 in H2O	291.4 Pa
Delta Electronics QFR1212GHEXUM	Plastic	70000 Hrs	10.8 VDC	12.6 VDC	1.8 A	Plastic	4 Wire Leads	0.728 lb	330.22 g	5.89 m³/min	210.4 CFM	21.6 W	6000 RPM	CE cURus VDE	38 mm	Ball	-10 °C	60 °C	120 mm	120 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB(A)	12 VDC	Tubeaxial	1.17 in H2O	291.4 Pa

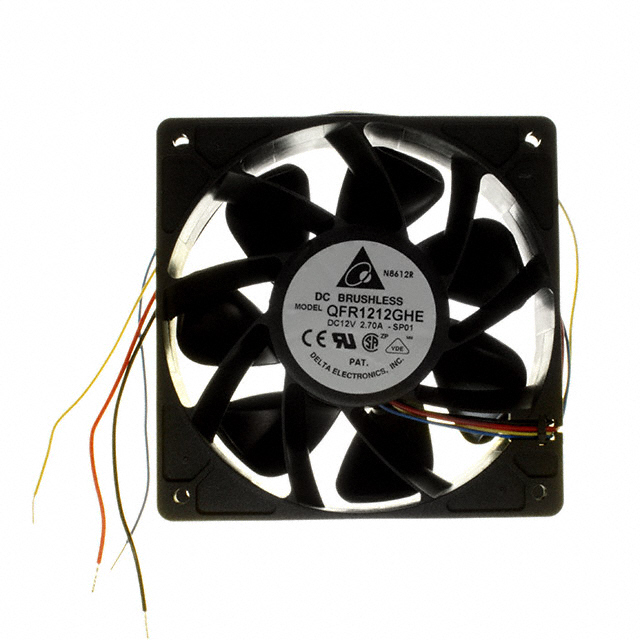

Delta Electronics QFR1212GHE-SP01	Plastic	40 °C 50000 Hrs	8 V	13.2 VDC	1.8 A	Plastic	4 Wire Leads	0.728 lb	330.22 g	5.89 m³/min	210.4 CFM	21.6 W	6000 RPM	CE CSA UL VDE	38 mm	Ball	-10 °C	60 °C	120 mm	120 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB(A)	12 VDC	Tubeaxial	1.17 in H2O	291.4 Pa
