A82F1C-P Series

Manufacturer: ODU

Catalog

ODU MINI-SNAP PLUG, STY 8, SZ 2,

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Size - Insert [custom]	Mounting Type	Orientation [custom]	Features	Shielding	Voltage Rating	Contact Finish - Mating	Number of Positions	Primary Material	Fastening Type	Connector Type	Material Flammability Rating	Contact Material	Backshell Material, Plating	Insert Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Ingress Protection	Shell Finish	Color	Current Rating (Amps)
ODU A82F1C-P16MFG0-650S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	300 VDC	Gold	16	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	6 mm	6.5 mm	0.256 in	0.236 in	IP50 - Dust Protected	Chrome over Nickel	Silver	7.5 A
ODU A82F1C-P16MFG0-600S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	300 VDC	Gold	16	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	5.5 mm	6 mm	0.236 in	0.217 in	IP50 - Dust Protected	Chrome over Nickel	Silver	7.5 A
ODU A82F1C-P07MJG0-650S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	550 VDC	Gold	7	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	6 mm	6.5 mm	0.256 in	0.236 in	IP50 - Dust Protected	Chrome over Nickel	Silver	7.5 A
ODU A82F1C-P10MJG9-600S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	500 V	Gold	10	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	5.5 mm	6 mm	0.236 in	0.217 in	IP50 - Dust Protected	Chrome over Nickel	Silver	7.5 A
ODU A82F1C-P07MJG0-700S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	550 VDC	Gold	7	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	6.5 mm	7 mm	0.276 "	0.256 in	IP50 - Dust Protected	Chrome over Nickel	Silver	7.5 A

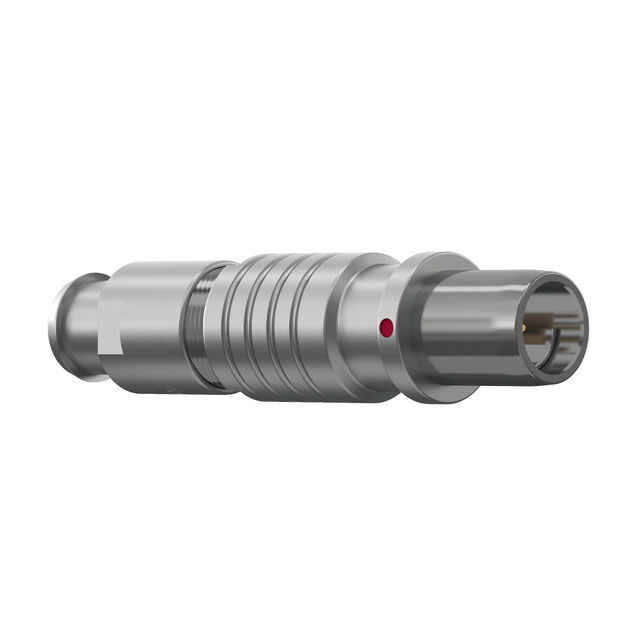

ODU A82F1C-P19MFD0-650S	Industrial Medical Military Testing Equipment & Measurement	120 °C	-40 C	Brass	2	Free Hanging (In-Line)	1	Backshell Strain Relief	Unshielded	333 V	Gold	19	Metal	Push-Pull	Plug Male Pins	UL94 V-0	Brass	Brass Chrome over Nickel	Polyetheretherketone (PEEK)	6 mm	6.5 mm	0.256 in	0.236 in	IP50 - Dust Protected	Chrome over Nickel	Silver	6 A
