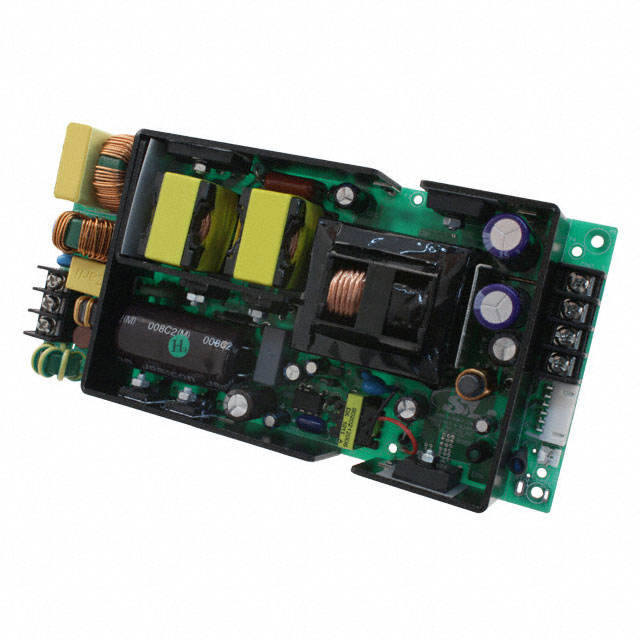

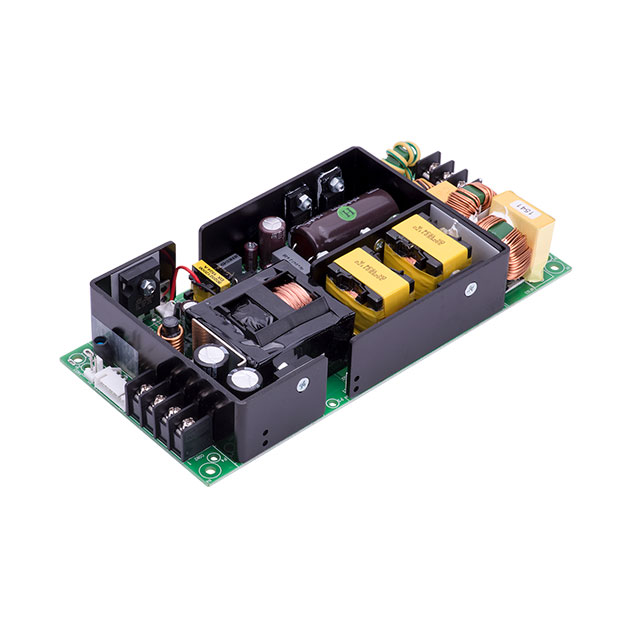

MINT2270 Series

Catalog

AC/DC CONVERTER 5V 24V 270W

Part	Minimum Load Required	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Features	Type	Efficiency	Voltage - Isolation	Approval Agency	Current - Output 1	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 2	Voltage - Output 2	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
SL POWER / Advanced Energy MINT2270A1976E02		270 W	100 VAC	240 VAC	Chassis Mount	Adjustable Output Remote On/Off Remote Sense	Open Frame	90 %	4000 V	CE cURus DEMKO	200 mA	2	Medical	70 °C	0 °C	11.3 A	24 V	5 V	7.17 in	29.6 mm	3.35 in	182 mm	1.17 "	85 mm
SL POWER / Advanced Energy MINT2270A1976E01		270 W	100 VAC	240 VAC	Chassis Mount	Adjustable Output Remote On/Off Remote Sense	Open Frame	90 %	4000 V	CE cURus DEMKO	200 mA	2	Medical	70 °C	0 °C	11.3 A	24 V	5 V	7.17 in	29.6 mm	3.35 in	182 mm	1.17 "	85 mm
