ADS7851 Series

SAR ADC, Dual, 1.5 MSPS, 14 Bit, Simultaneous Sampling

Catalog

SAR ADC, Dual, 1.5 MSPS, 14 Bit, Simultaneous Sampling

Part	Supplier Device Package	Reference Type	Input Type	Number of Bits	Data Interface	Voltage - Supply, Analog	Ratio - S/H:ADC	Architecture	Configuration	Features	Package / Case	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Sampling Rate (Per Second)	Number of A/D Converters	Number of Inputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplied Contents	Utilized IC / Part	Power (Typ) @ Conditions	Input Range [Min]	Input Range [Max]
Texas Instruments ADS7851IRTER	16-WQFN (3x3)	Internal	Differential	14	SPI	5 V	1:1	SAR	S/H-ADC	Simultaneous Sampling	16-WFQFN Exposed Pad	5.25 V	1.65 V	1.5 M	2	2	125 °C	-40 °C	Surface Mount

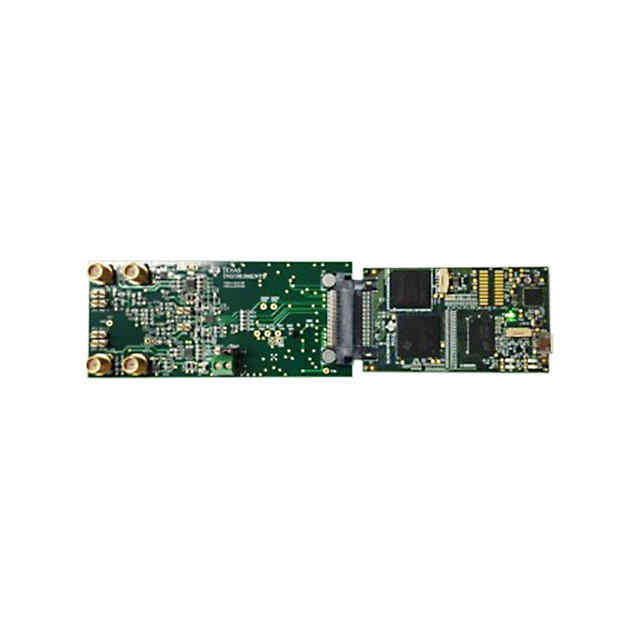

Texas Instruments ADS7851EVM-PDK				14	Serial									1.5 M	2					Board(s)	ADS7851	50 mW	-2 xVREF	2 Vpp
Texas Instruments ADS7851IRTET	16-WQFN (3x3)	Internal	Differential	14	SPI	5 V	1:1	SAR	S/H-ADC	Simultaneous Sampling	16-WFQFN Exposed Pad	5.5 V	1.65 V	1.5 M	2	2	125 °C	-40 °C	Surface Mount

Catalog

SAR ADC, Dual, 1.5 MSPS, 14 Bit, Simultaneous Sampling

Key Features

• 12- and 14-Bit Pin-Compatible FamilySimultaneous Sampling of Two ChannelsSupports Fully-Differential Analog InputsIndependent Internal Reference (per ADC)High Speed:Up to 2 MSPS with the ADS7251 (12-Bit)Up to 1.5 MSPS with the ADS7851 (14-Bit)Excellent Performance:ADS7251:SNR: 73 dBINL: ±1 LSBADS7851:SNR: 83.5 dBINL: ±2 LSBFully-Specified Over the Extended Industrial Temperature Range: –40°C to +125°CSmall Footprint: WQFN-16 (3 mm × 3 mm)12- and 14-Bit Pin-Compatible FamilySimultaneous Sampling of Two ChannelsSupports Fully-Differential Analog InputsIndependent Internal Reference (per ADC)High Speed:Up to 2 MSPS with the ADS7251 (12-Bit)Up to 1.5 MSPS with the ADS7851 (14-Bit)Excellent Performance:ADS7251:SNR: 73 dBINL: ±1 LSBADS7851:SNR: 83.5 dBINL: ±2 LSBFully-Specified Over the Extended Industrial Temperature Range: –40°C to +125°CSmall Footprint: WQFN-16 (3 mm × 3 mm)

Description

The ADS7251 and ADS7851 belong to a family of pin-compatible, dual, high-speed, simultaneous-sampling, analog-to-digital converters (ADCs) that support fully-differential analog inputs and feature two independent internal voltage references. The ADS7251 offers 12-bit resolution and up to 2-MSPS sampling speed. The ADS7851 offers 14-bit resolution and up to 1.5-MSPS sampling speed. The devices support a wide digital supply voltage range, allowing easy communication with a variety of digital host controllers using a simple, serial interface. Both devices are fully specified over the extended industrial temperature range (–40°C to +125°C) and are available in a pin-compatible, space-saving, WQFN-16 (3-mm × 3-mm) package. The ADS7251 and ADS7851 belong to a family of pin-compatible, dual, high-speed, simultaneous-sampling, analog-to-digital converters (ADCs) that support fully-differential analog inputs and feature two independent internal voltage references. The ADS7251 offers 12-bit resolution and up to 2-MSPS sampling speed. The ADS7851 offers 14-bit resolution and up to 1.5-MSPS sampling speed. The devices support a wide digital supply voltage range, allowing easy communication with a variety of digital host controllers using a simple, serial interface. Both devices are fully specified over the extended industrial temperature range (–40°C to +125°C) and are available in a pin-compatible, space-saving, WQFN-16 (3-mm × 3-mm) package.
