19443100 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 2 PEGS, HOOD, TOP ENTRY, STAINLESS STEEL BODY, 1 LEVER, 10B
| Part | Thread Size | Ingress Protection | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Lock Location | Size | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

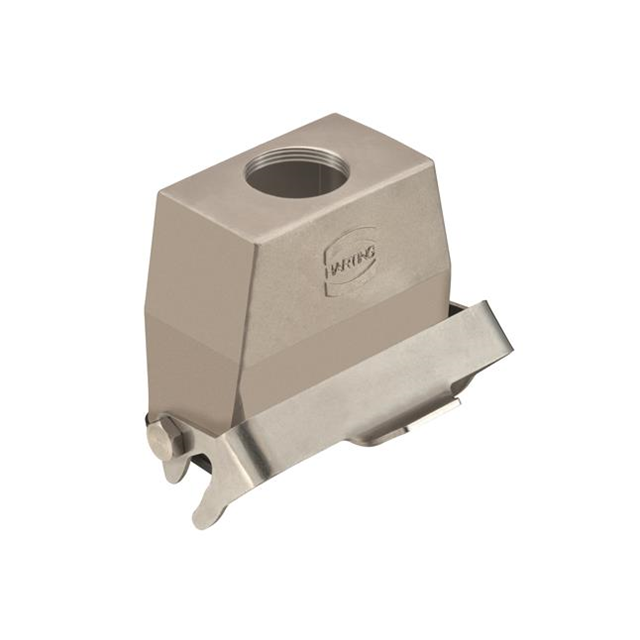

 HARTING | M32 | IP65 - Dust Tight Water Resistant | Stainless Steel | 125 °C | -40 C | Top Entry | Locking Clip (1) on Base Bottom | 10B | 1.693 " | 75 mm | 93.5 mm | 3.681 in | 2.953 " | 43 mm | Hood | |
 HARTING | ||||||||||||||||

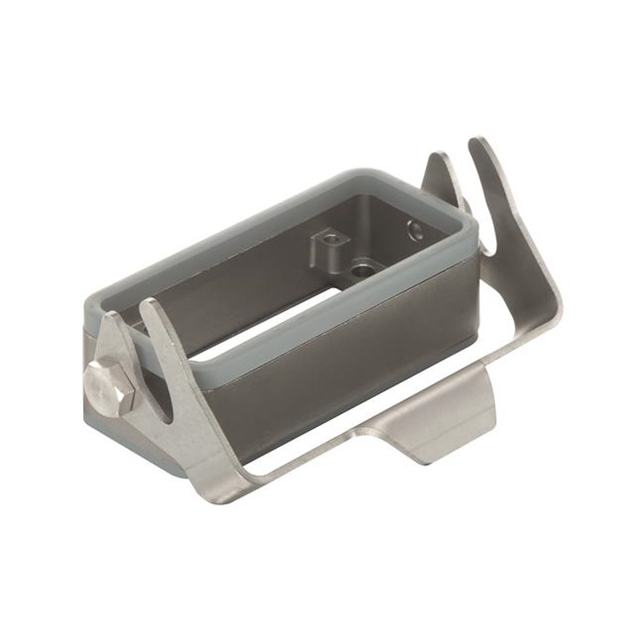

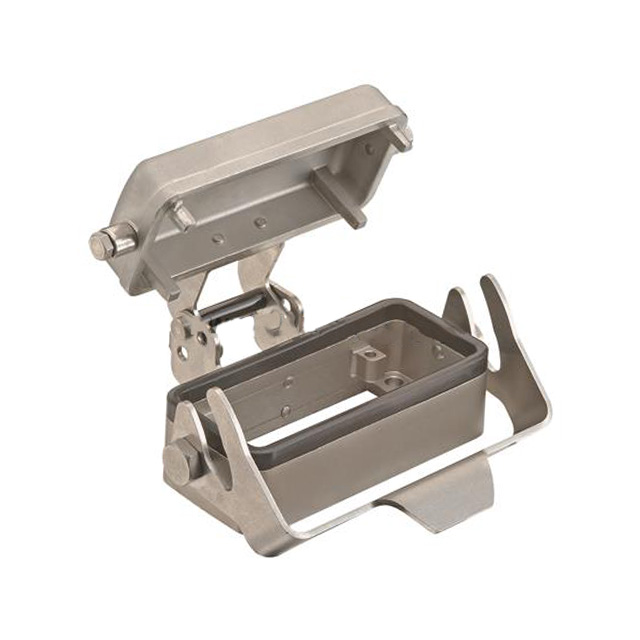

 HARTING | IP65 - Dust Tight Water Resistant | Stainless Steel | 125 °C | -40 C | Bottom Entry | Locking Clip (1) on Base Bottom | 10B | 1.736 " | 29.4 mm | 94.2 mm | 3.709 " | 1.157 " | 44.1 mm | Base - Panel Mount | Cover | |
 HARTING | M32 | IP65 - Dust Tight Water Resistant | Stainless Steel | 125 °C | -40 C | Bottom Entry Top or Bottom Entry | Locking Clip (1) on Hood Top | 10B | 1.693 " | 77.4 mm | 93.5 mm | 3.681 in | 3.047 " | 43 mm | Hood - Coupling | Cable to Cable |
 HARTING | IP65 - Dust Tight Water Resistant | Stainless Steel | 125 °C | -40 C | Bottom Entry | Locking Clip (1) on Base Bottom | 10B | Base - Panel Mount |
