TB9053 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
MOTOR DRIVER, H-BRIDGE, BRUSHED DC, 4 OUTPUTS, 4.5 TO 5.5 V SUP, -40 TO 125°C, LQFN-EP-40
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Supplier Device Package | Technology | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Current - Output | Package / Case | Function | Mounting Type | Motor Type - Stepper | Motor Type - AC, DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

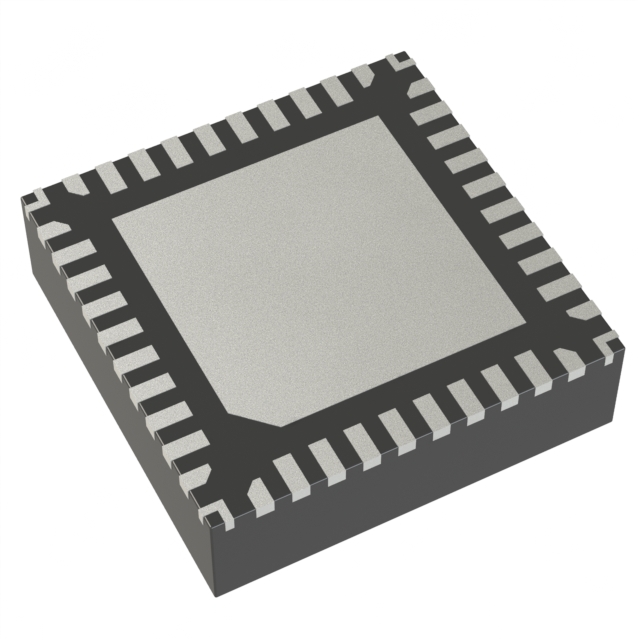

 Toshiba Semiconductor and Storage | 4.5 V | 28 V | 28 V | 4.5 V | Automotive | 40-QFN (6x6) | DMOS | Half Bridge (4) | 125 °C | -40 °C | PWM SPI | 6 A | 40-LFQFN Exposed Pad | Driver - Fully Integrated Control and Power Stage | Surface Mount | Bipolar | Brushed DC |
