147099 Series

Catalog

CONN RCPT 6POS 0.1 GOLD PCB

Part	Fastening Type	Number of Positions	Insulation Color	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Mating	Contact Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material
TE Connectivity Raychem Cable Protection 5-147099-3	Push-Pull	6	Black	All	Receptacle Bottom or Top Entry	2 A	Through Hole	2.54 mm	0.1 in	6.73 mm	0.265 in	Tin	Square	0.1 in	2.54 mm	Solder	Board to Board Cable	10 çin	0.25 çm	125 °C	-65 ░C	UL94 V-0	Gold	Female Socket	2	3.18 mm	0.125 in	150 Áin	3.81 Ám	Phosphor Bronze

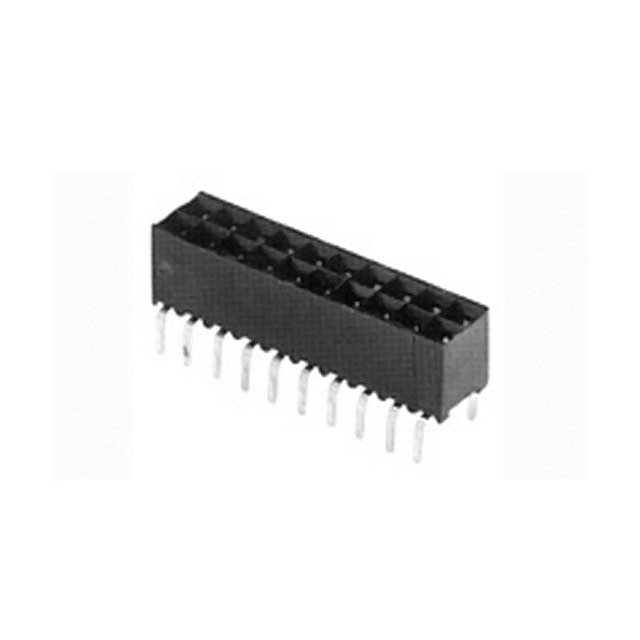

TE Connectivity Raychem Cable Protection 5-147099-5	Push-Pull	10	Black	All	Receptacle Bottom or Top Entry	2 A	Through Hole	2.54 mm	0.1 in	6.73 mm	0.265 in	Tin	Square	0.1 in	2.54 mm	Solder	Board to Board Cable	10 çin	0.25 çm	125 °C	-65 ░C	UL94 V-0	Gold	Female Socket	2	3.18 mm	0.125 in	150 Áin	3.81 Ám	Phosphor Bronze
