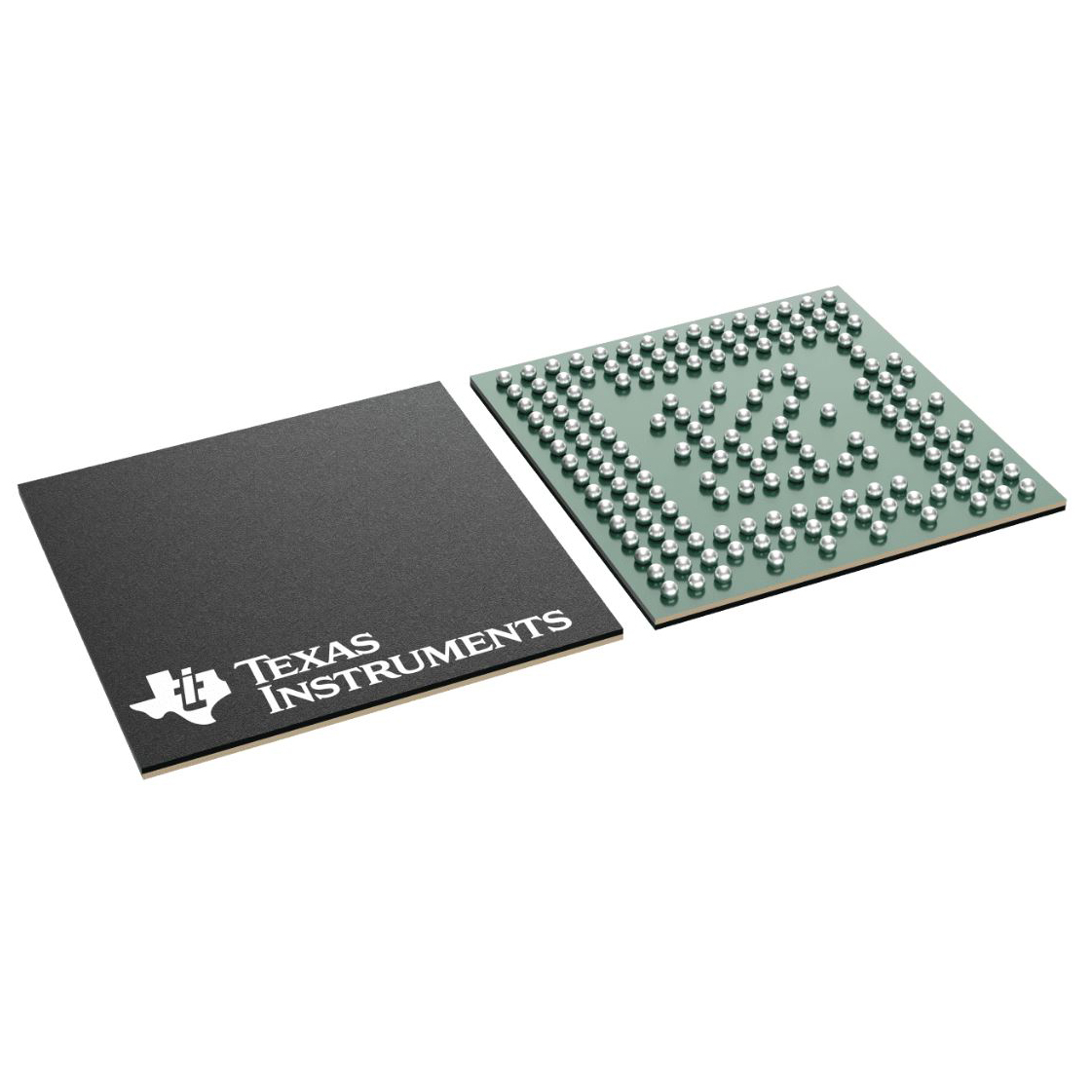

IWR1843 Series
Single-chip 76-GHz to 81-GHz industrial radar sensor integrating DSP, MCU and radar accelerator
Manufacturer: Texas Instruments
Catalog
Single-chip 76-GHz to 81-GHz industrial radar sensor integrating DSP, MCU and radar accelerator
Key Features
• FMCW transceiverIntegrated PLL, transmitter, receiver, Baseband, and ADC76 to 81GHz coverage with 4GHz available bandwidthFour receive channelsThree transmit channelsUltra-accurate chirp engine based on fractional-N PLLTX power: 12dBmBuilt-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip Memory: 2MBCortex-R4F microcontroller for object tracking and classification, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Integrated peripheralsInternal memories With ECCHost interfaceCAN and CAN-FDOther interfaces available to user applicationUp to 6 ADC channelsUp to 2 SPI channelsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid IEC 61508 functional safety system design up to SIL 3Hardware integrity up to SIL-2Safety-related certificationIEC 61508 certified upto SIL 2 by TUV SUDDevice advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityProgrammable phase rotators in transmit path to enable beam formingPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3V/1.8VClock sourceSupports external oscillator at 40MHzSupports externally driven clock (square/sine) at 40MHzSupports 40MHz crystal connection with load capacitorsEasy hardware design0.65mm pitch, 161-pin 10.4mm × 10.4mmflip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction temp range: –40°C to 125°CFMCW transceiverIntegrated PLL, transmitter, receiver, Baseband, and ADC76 to 81GHz coverage with 4GHz available bandwidthFour receive channelsThree transmit channelsUltra-accurate chirp engine based on fractional-N PLLTX power: 12dBmBuilt-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip Memory: 2MBCortex-R4F microcontroller for object tracking and classification, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Integrated peripheralsInternal memories With ECCHost interfaceCAN and CAN-FDOther interfaces available to user applicationUp to 6 ADC channelsUp to 2 SPI channelsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid IEC 61508 functional safety system design up to SIL 3Hardware integrity up to SIL-2Safety-related certificationIEC 61508 certified upto SIL 2 by TUV SUDDevice advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityProgrammable phase rotators in transmit path to enable beam formingPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3V/1.8VClock sourceSupports external oscillator at 40MHzSupports externally driven clock (square/sine) at 40MHzSupports 40MHz crystal connection with load capacitorsEasy hardware design0.65mm pitch, 161-pin 10.4mm × 10.4mmflip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction temp range: –40°C to 125°C
Description
AI
The IWR1843 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operating in the 76 to 81GHz band with up to 4GHz continuous chirp. The device is built with the low-power 45nm RFCMOS process from Texas Instruments. This solution enables unprecedented levels of integration in an extremely small form factor. The IWR1843 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in industrial applications, such as, building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.
The IWR1843 device is a self-contained, single-chip solution that simplifies the implementation of mmWave sensors in the band of 76 to 81GHz. The IWR1843 includes a monolithic implementation of a 3TX, 4RX system with built-in PLL, and ADC converters. The IWR1843 also integrates a DSP subsystem, which contains a TI high-performance C674x DSP for the radar signal processing. The device includes an ARM R4F-based processor subsystem, which is responsible for front-end configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation with the possibility of dynamic reconfiguration for implementing a multimode sensor. The Hardware Accelerator block (HWA) can perform radar processing and can help save MIPS on the DSP for higher-level algorithms. Additionally, the device is provided as a complete platform solution including TI reference designs, software drivers, sample configurations, API guides, training, and user documentation.
The IWR1843 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operating in the 76 to 81GHz band with up to 4GHz continuous chirp. The device is built with the low-power 45nm RFCMOS process from Texas Instruments. This solution enables unprecedented levels of integration in an extremely small form factor. The IWR1843 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in industrial applications, such as, building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.
The IWR1843 device is a self-contained, single-chip solution that simplifies the implementation of mmWave sensors in the band of 76 to 81GHz. The IWR1843 includes a monolithic implementation of a 3TX, 4RX system with built-in PLL, and ADC converters. The IWR1843 also integrates a DSP subsystem, which contains a TI high-performance C674x DSP for the radar signal processing. The device includes an ARM R4F-based processor subsystem, which is responsible for front-end configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation with the possibility of dynamic reconfiguration for implementing a multimode sensor. The Hardware Accelerator block (HWA) can perform radar processing and can help save MIPS on the DSP for higher-level algorithms. Additionally, the device is provided as a complete platform solution including TI reference designs, software drivers, sample configurations, API guides, training, and user documentation.
