TPF13 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

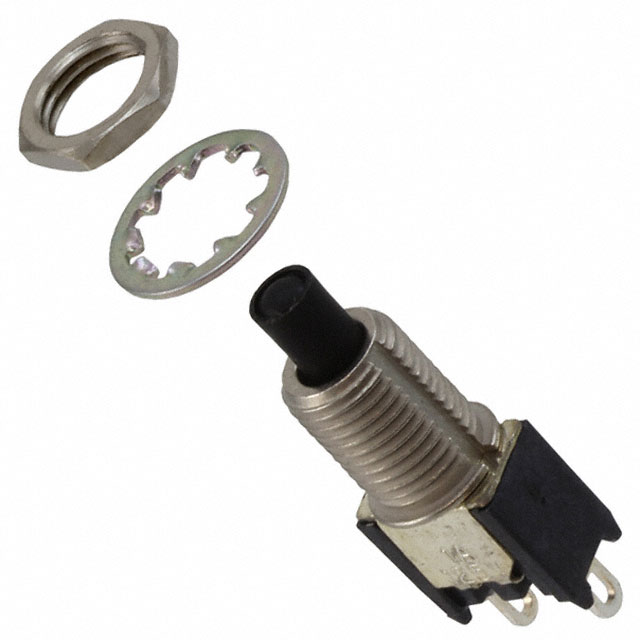

SWITCH PUSH SPST-NO 1A 125V
| Part | Electrical Life | Type | Switch Function | Voltage Rating - AC | Mounting Type | Actuator Type | Actuator Marking | Circuit | Color - Actuator/Cap | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 60000 Cycles | Standard | Off-Mom | 125 V | Panel Mount Rear | Plunger Round | No Marking | SPST-NO | Red | 20 V | 0.25 in | 1 A | -30 ░C | 65 °C | Solder Lug |
TE Connectivity AMP Connectors | 60000 Cycles | Standard | On-Mom | 125 V | Panel Mount Rear | Plunger Round | No Marking | SPDT | Red | 20 V | 0.25 in | 1 A | -30 ░C | 65 °C | Solder Lug |
 TE Connectivity AMP Connectors | 60000 Cycles | Standard | Off-Mom | 125 V | Panel Mount Rear | Plunger Round | No Marking | SPST-NO | Black | 20 V | 0.25 in | 1 A | -30 ░C | 65 °C | Solder Lug |
