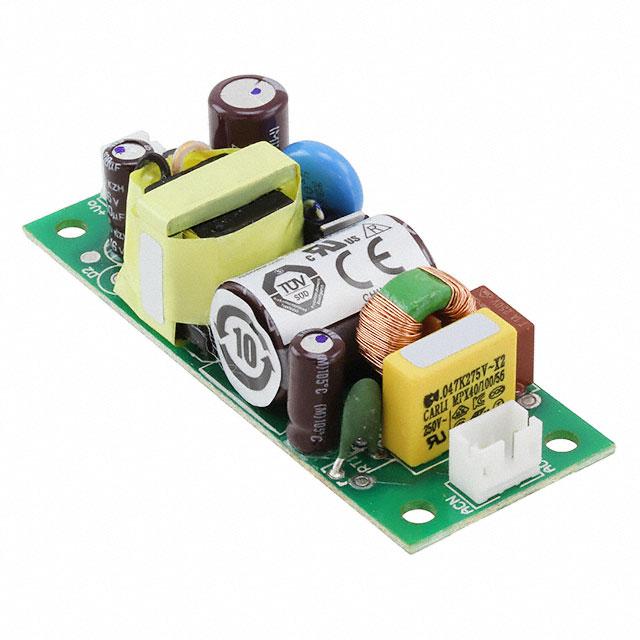

ECL05 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Minimum Load Required | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Current - Output 1 | Number of Outputs | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Features | Efficiency | Voltage - Isolation | Applications | Standard Number | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Chassis Mount | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 5 W | 410 mA | 1 | 12 V | 70 °C | -20 °C | Adjustable Output DC Input Capable Universal Input | 78 % | 3000 V | ITE (Commercial) | 62368-1 | Open Frame | |
 XP Power | Chassis Mount | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 5 W | 210 mA | 1 | 24 V | 70 °C | -20 °C | Adjustable Output DC Input Capable Universal Input | 3000 V | ITE (Commercial) | 62368-1 | Open Frame | ||

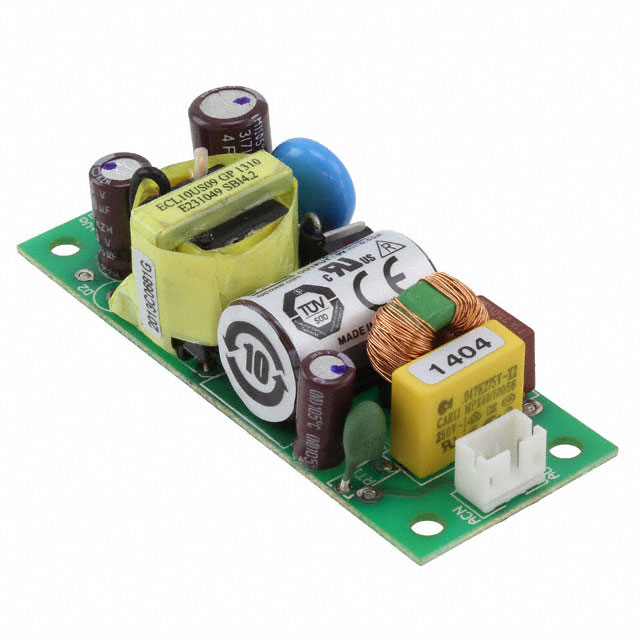

 XP Power | Chassis Mount | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 5 W | 550 mA | 1 | 9 V | 70 °C | -20 °C | Adjustable Output DC Input Capable Universal Input | 78 % | 3000 V | ITE (Commercial) | 62368-1 | Open Frame |
