3050-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

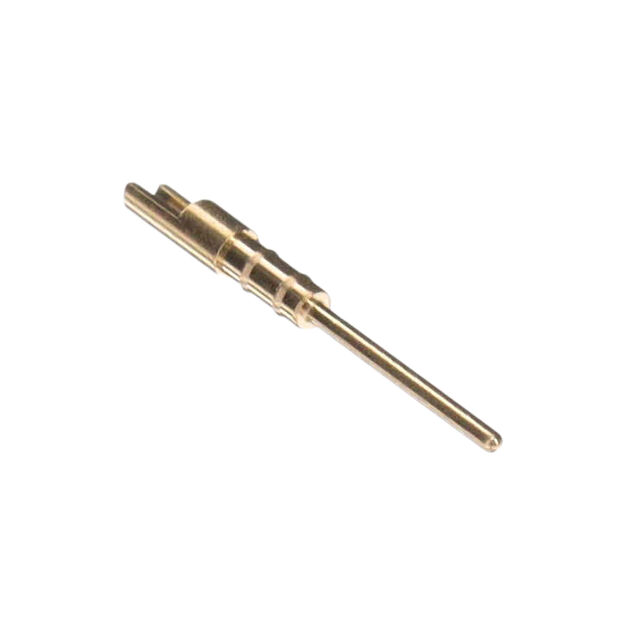

STANDARD I.C. PIN
| Part | Mounting Type | Contact Finish | Terminal Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Gold | PC Pin | 1.02 mm | 0.04 in | 0.016 in | 0.41 mm | Wire | 0.25 Ám | 10 Áin | 0.032 in | 0.81 mm | 9.55 mm | 0.376 in | Brass Alloy | 0.276 " | 7 mm | Non-Insulated | Press-Fit |
