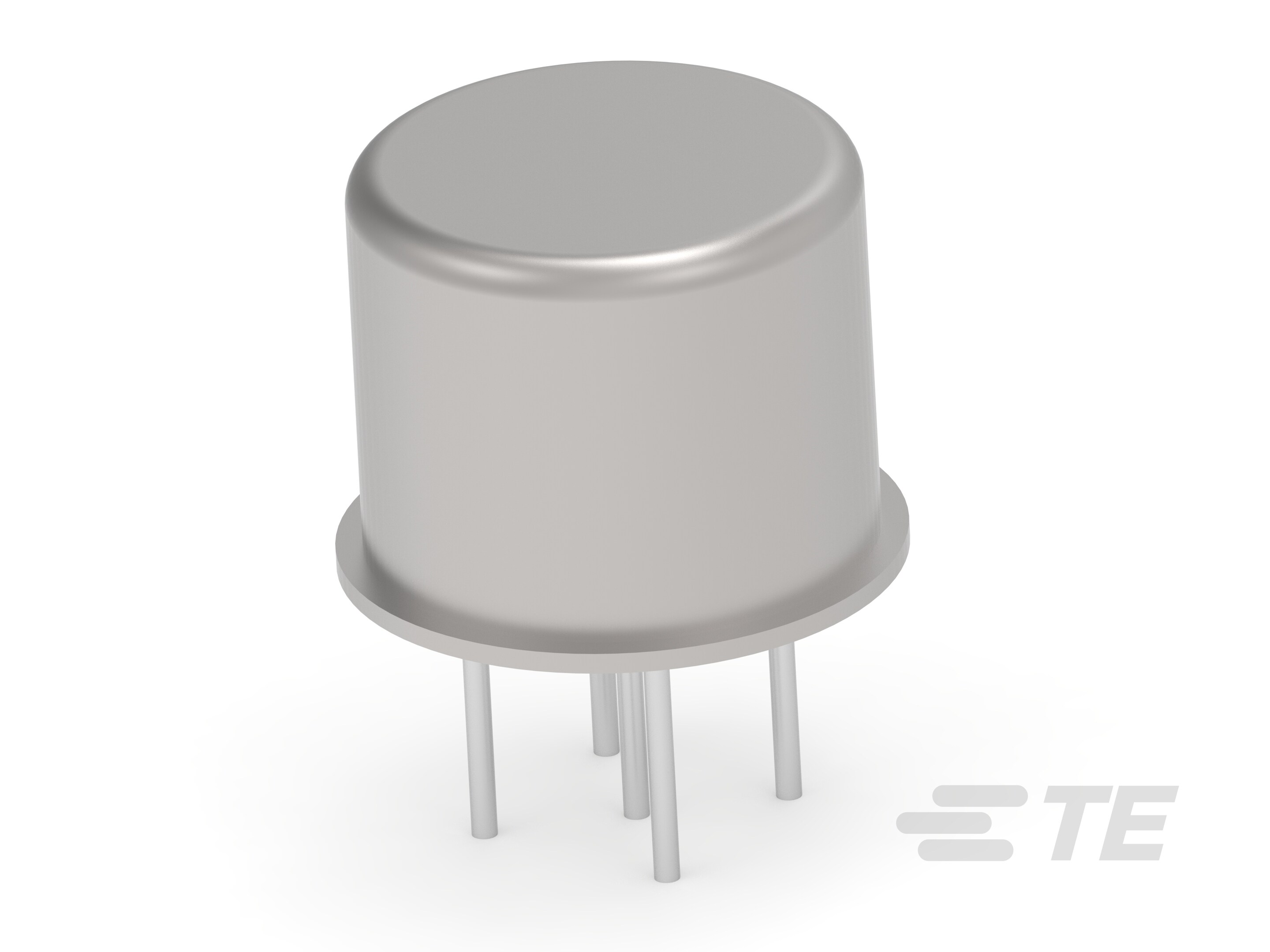

CII 1MA TO-5 Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GENERAL PURPOSE SPDT 1A 5V
| Part | Contact Form | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Coil Current | Switching Voltage [Max] | Must Release Voltage | Must Operate Voltage | Coil Type | Contact Rating (Current) | Coil Voltage | Load - Max Switching | Release Time | Seal Rating | Mounting Type | Termination Style | Relay Type | Coil Resistance | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 79.4 mA | 28 VDC 115 VAC | 0.23 VDC | 2.8 VDC | Non Latching | 1 A | 5 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | |||
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 48 mA | 28 VDC 115 VAC | 0.28 VDC | 3.5 VDC | Non Latching | 1 A | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | ||||
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 24 mA | 28 VDC 115 VAC | 0.63 VDC | 7 VDC | Non Latching | 1 A | 12 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | 500 Ohms | ||
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 15.9 mA | 28 VDC 115 VAC | 0.91 VDC | 10.5 VDC | Non Latching | 1 A | 18 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | |||
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 13.3 mA | 28 VDC 115 VAC | 1.37 VDC | 14.2 VDC | Non Latching | 1 A | 26.5 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | |||
 TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 13.3 mA | 28 VDC 115 VAC | 1.37 VDC | 14.2 VDC | Non Latching | 1 A | 26.5 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | 2 kOhms | ||
 TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 24 mA | 28 VDC 115 VAC | 0.63 VDC | 7 VDC | Non Latching | 1 A | 12 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | MIL-R-39016/7 | Military | |
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 13.3 mA | 28 VDC 115 VAC | 1.37 VDC | 14.2 VDC | Non Latching | 1 A | 26.5 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | |||
TE Connectivity AMP Connectors | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | -65 ░C | 125 °C | 2 ms | 32.1 mA | 28 VDC 115 VAC | 0.54 VDC | 5.3 VDC | Non Latching | 1 A | 9 VDC | 28 W 115 VA | 2 ms | Sealed - Hermetically | Through Hole | PC Pin | General Purpose | 280 Ohms |
